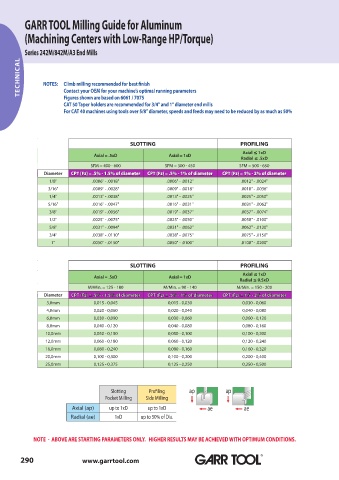

GARR TOOL Milling Guide for Aluminum
(Machining Centers with Low-Range HP/Torque)

Series 242M/842M/A3 End Mills

TECHNICAL NOTES: Climb milling recommended for best finish

Contact your OEM for your machine’s optimal running parameters
Figures shown are based on 6061 / 7075
CAT 50 Taper holders are recommended for 3/4" and 1" diameter end mills
For CAT 40 machines using tools over 5/8" diameter, speeds and feeds may need to be reduced by as much as 50%

SLOTTING PROFILING
Axial [ 1xD
[
Axial = .5xD Axial = 1xD
Radial [ .5xD
[
SFM = 400 - 600 SFM = 300 - 450 SFM = 500 - 650
CPT (Fz) = .5% - 1.5% of diameter
CPT (Fz) = 1% - 2% of diameter
CPT (Fz) = .5% - 1% of diameter
Diameter CPT (Fz) = .5% - 1.5% of diamet er CPT (Fz) = .5% - 1% of diamet er CPT (Fz) = 1% - 2% of diamet er
1/8" .0006" - .0018" .0006" - .0012" .0012" - .0024"
3/16" .0009" - .0028" .0009" - .0018" .0018" - .0036"
1/4" .0013" - .0038" .0013" - .0025" .0025" - .0050"
5/16" .0016" - .0047" .0016" - .0031" .0031" - .0062"
3/8" .0019" - .0056" .0019" - .0037" .0037" - .0074"
1/2" .0025" - .0075" .0025" - .0050" .0050" - .0100"
5/8" .0031" - .0094" .0031" - .0062" .0062" - .0120"
3/4" .0038" - .0110" .0038" - .0075" .0075" - .0150"
1" .0050" - .0150" .0050" - .0100" .0100" - .0200"

SLOTTING PROFILING

Axial [ 1xD
[
Axial = .5xD Axial = 1xD
Radial [ 0.5xD
[
M/Min. = 125 - 180 M/Min. = 90 - 140 M/Min. = 150 - 200
CPT (Fz) = .5% - 1.5% of diameter
CPT (Fz) = .5% - 1% of diameter
CPT (Fz) = 1% - 2% of diameter
Diameter CPT (Fz) = .5% - 1.5% of diamet er CPT (Fz) = .5% - 1% of diamet er CPT (Fz) = 1% - 2% of diamet er
3,0mm 0,015 - 0,045 0,015 - 0,030 0,030 - 0,060
4,0mm 0,020 - 0,060 0,020 - 0,040 0,040 - 0,080
6,0mm 0,030 - 0,090 0,030 - 0,060 0,060 - 0,120
8,0mm 0,040 - 0,120 0,040 - 0,080 0,080 - 0,160
10,0mm 0,050 - 0,150 0,050 - 0,100 0,100 - 0,200
12,0mm 0,060 - 0,180 0,060 - 0,120 0,120 - 0,240
16,0mm 0,080 - 0,240 0,080 - 0,160 0,160 - 0,320
20,0mm 0,100 - 0,300 0,100 - 0,200 0,200 - 0,400
25,0mm 0,125 - 0,375 0,125 - 0,250 0,250 - 0,500

Slotting Profiling ap ap
Pocket Milling Side Milling

Axial (ap) up to 1xD up to 1xD ae ae
Radial (ae) 1xD up to 50% of Dia.

NOTE - ABOVE ARE STARTING PARAMETERS ONLY. HIGHER RESULTS MAY BE ACHIEVED WITH OPTIMUM CONDITIONS.
