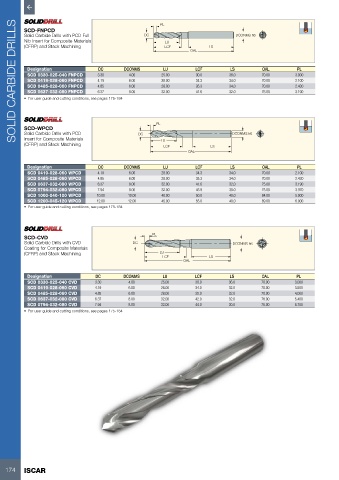

Page 176 - ISCAR(HOLE_MAKING_CATALOG_65)
P. 176

SOLID CARBIDE DRILLS
                                                         PL

          SCD-FNPCD
          Solid Carbide Drills with PCD Full        DC                              DCONMS h6
          Nib Insert for Composite Materials               LU
          (CFRP) and Stack Machining                       LCF            LS
                                                                    OAL

           Designation              DC       DCONMS       LU          LCF         LS         OAL         PL
           SCD 0330-025-040 FNPCD  3.30       4.00        25.00       30.0        36.0       70.00       3.000
           SCD 0419-028-060 FNPCD  4.19       6.00        28.00       34.3        34.0       70.00       2.100
           SCD 0485-028-060 FNPCD  4.85       6.00        28.00       35.3        34.0       70.00       2.430
           SCD 0637-032-080 FNPCD  6.37       8.00        32.00       41.6        32.0       76.00       3.190

          •  For user guide and cutting conditions, see pages 175-184



                                                        PL

          SCD-WPCD
          Solid Carbide Drills with PCD           DC                               DCONMS h6
          Insert for Composite Materials                  LU
          (CFRP) and Stack Machining                      LCF              LS
                                                                   OAL

           Designation              DC       DCONMS       LU          LCF         LS         OAL         PL
           SCD 0419-028-060 WPCD   4.19       6.00        28.00       34.3        34.0       70.00       2.100
           SCD 0485-028-060 WPCD   4.85       6.00        28.00       35.3        34.0       70.00       2.430
           SCD 0637-032-080 WPCD   6.37       8.00        32.00       41.6        32.0       75.00       3.190
           SCD 0794-032-080 WPCD   7.94       8.00        32.00       43.9        30.0       75.00       3.970
           SCD 1000-040-100 WPCD   10.00      10.00       40.00       50.0        40.0       84.00       5.000
           SCD 1200-045-120 WPCD   12.00      12.00       45.00       55.0        40.0       89.00       6.000

          •  For user guide and cutting conditions, see pages 175-184



                                                      PL
          SCD-CVD
          Solid Carbide Drills with CVD         DC                                 DCONMS h6
          Coating for Composite Materials
          (CFRP) and Stack Machining                     LU
                                                          LCF             LS
                                                                 OAL

           Designation             DC       DCONMS        LU          LCF         LS         OAL         PL
           SCD 0330-025-040 CVD   3.30        4.00        25.00       30.0       36.0        70.00       3.000
           SCD 0419-028-060 CVD   4.19        6.00        28.00       34.0       32.0        70.00       3.500
           SCD 0485-028-060 CVD   4.85        6.00        28.00       35.0       32.0        70.00       4.000
           SCD 0637-032-080 CVD   6.37        8.00        32.00       42.0       32.0        76.00       5.400
           SCD 0794-032-080 CVD   7.94        8.00        32.00       44.0       30.0        76.00       6.700

          •  For user guide and cutting conditions, see pages 175-184
