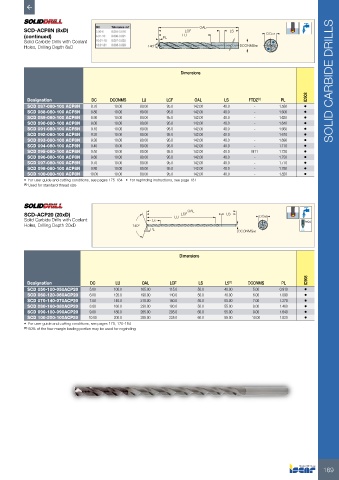

Page 171 - ISCAR(HOLE_MAKING_CATALOG_65)

OAL
SCD-ACP8N (8xD) LCF LS
(continued) PL LU DCm7
Solid Carbide Drills with Coolant
Holes, Drilling Depth 8xD 140˚ DCONMSh6

Dimensions SOLID CARBIDE DRILLS

IC908
Designation DC DCONMS LU LCF OAL LS FTDZ (1) PL
SCD 087-080-100 ACP8N 8.70 10.00 80.00 95.0 142.00 40.0 - 1.580 •
SCD 088-080-100 ACP8N 8.80 10.00 80.00 95.0 142.00 40.0 - 1.600 •
SCD 089-080-100 ACP8N 8.90 10.00 80.00 95.0 142.00 40.0 - 1.620 •
SCD 090-080-100 ACP8N 9.00 10.00 80.00 95.0 142.00 40.0 - 1.640 •
SCD 091-080-100 ACP8N 9.10 10.00 80.00 95.0 142.00 40.0 - 1.660 •
SCD 092-080-100 ACP8N 9.20 10.00 80.00 95.0 142.00 40.0 - 1.670 •
SCD 093-080-100 ACP8N 9.30 10.00 80.00 95.0 142.00 40.0 - 1.690 •
SCD 094-080-100 ACP8N 9.40 10.00 80.00 95.0 142.00 40.0 - 1.710 •
SCD 095-080-100 ACP8N 9.50 10.00 80.00 95.0 142.00 40.0 M11 1.730 •
SCD 096-080-100 ACP8N 9.60 10.00 80.00 95.0 142.00 40.0 - 1.750 •
SCD 097-080-100 ACP8N 9.70 10.00 80.00 95.0 142.00 40.0 - 1.770 •
SCD 098-080-100 ACP8N 9.80 10.00 80.00 95.0 142.00 40.0 - 1.780 •
SCD 100-080-100 ACP8N 10.00 10.00 80.00 95.0 142.00 40.0 - 1.820 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size

OAL
SCD-ACP20 (20xD) LCF LS DCh8
Solid Carbide Drills with Coolant L5 LU MQL
Holes, Drilling Depth 20xD 140º
PL
DCONMSh6

Dimensions

IC908
Designation DC LU OAL LCF LS L5 (1) DCONMS PL
SCD 050-100-050ACP20 5.00 100.0 165.00 115.0 50.0 40.00 5.00 0.910 •
SCD 060-120-060ACP20 6.00 120.0 190.00 140.0 50.0 40.00 6.00 1.090 •
SCD 070-140-070ACP20 7.00 140.0 210.00 160.0 50.0 55.00 7.00 1.270 •
SCD 080-160-080ACP20 8.00 160.0 230.00 180.0 50.0 55.00 8.00 1.460 •
SCD 090-180-090ACP20 9.00 180.0 265.00 205.0 60.0 55.00 9.00 1.640 •
SCD 100-200-100ACP20 10.00 200.0 285.00 225.0 60.0 55.00 10.00 1.820 •
• For user guide and cutting conditions, see pages 170, 175-184
(1) 50% of the four margin leading portion may be used for regrinding

169
