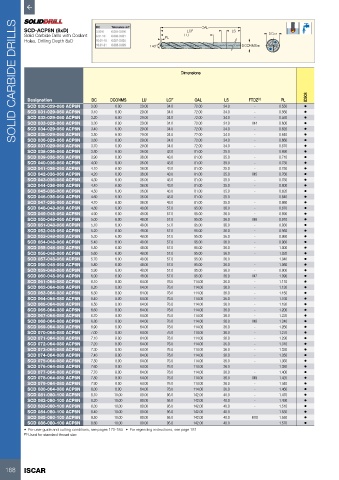

Page 170 - ISCAR(HOLE_MAKING_CATALOG_65)

SOLID CARBIDE DRILLS
OAL
SCD-ACP8N (8xD) LCF LS
Solid Carbide Drills with Coolant PL LU DCm7
Holes, Drilling Depth 8xD
140˚ DCONMSh6

Dimensions

IC908
Designation DC DCONMS LU LCF OAL LS FTDZ (1) PL
SCD 030-029-060 ACP8N 3.00 6.00 29.00 34.0 72.00 34.0 - 0.550 •
SCD 031-029-060 ACP8N 3.10 6.00 29.00 34.0 72.00 34.0 - 0.560 •
SCD 032-029-060 ACP8N 3.20 6.00 29.00 34.0 72.00 34.0 - 0.580 •
SCD 033-029-060 ACP8N 3.30 6.00 29.00 34.0 72.00 34.0 M4 0.600 •
SCD 034-029-060 ACP8N 3.40 6.00 29.00 34.0 72.00 34.0 - 0.620 •
SCD 035-029-060 ACP8N 3.50 6.00 29.00 34.0 72.00 34.0 - 0.640 •
SCD 036-029-060 ACP8N 3.60 6.00 29.00 34.0 72.00 34.0 - 0.660 •
SCD 037-029-060 ACP8N 3.70 6.00 29.00 34.0 72.00 34.0 - 0.670 •
SCD 038-036-060 ACP8N 3.80 6.00 36.00 43.0 81.00 35.0 - 0.690 •
SCD 039-036-060 ACP8N 3.90 6.00 36.00 43.0 81.00 35.0 - 0.710 •
SCD 040-036-060 ACP8N 4.00 6.00 36.00 43.0 81.00 35.0 - 0.730 •
SCD 041-036-060 ACP8N 4.10 6.00 36.00 43.0 81.00 35.0 - 0.750 •
SCD 042-036-060 ACP8N 4.20 6.00 36.00 43.0 81.00 35.0 M5 0.760 •
SCD 043-036-060 ACP8N 4.30 6.00 36.00 43.0 81.00 35.0 - 0.780 •
SCD 044-036-060 ACP8N 4.40 6.00 36.00 43.0 81.00 35.0 - 0.800 •
SCD 045-036-060 ACP8N 4.50 6.00 36.00 43.0 81.00 35.0 - 0.820 •
SCD 046-036-060 ACP8N 4.60 6.00 36.00 43.0 81.00 35.0 - 0.840 •
SCD 047-036-060 ACP8N 4.70 6.00 36.00 43.0 81.00 35.0 - 0.860 •
SCD 048-048-060 ACP8N 4.80 6.00 48.00 57.0 95.00 36.0 - 0.870 •
SCD 049-048-060 ACP8N 4.90 6.00 48.00 57.0 95.00 36.0 - 0.890 •
SCD 050-048-060 ACP8N 5.00 6.00 48.00 57.0 95.00 36.0 M6 0.910 •
SCD 051-048-060 ACP8N 5.10 6.00 48.00 57.0 95.00 36.0 - 0.930 •
SCD 052-048-060 ACP8N 5.20 6.00 48.00 57.0 95.00 36.0 - 0.950 •
SCD 053-048-060 ACP8N 5.30 6.00 48.00 57.0 95.00 36.0 - 0.960 •
SCD 054-048-060 ACP8N 5.40 6.00 48.00 57.0 95.00 36.0 - 0.980 •
SCD 055-048-060 ACP8N 5.50 6.00 48.00 57.0 95.00 36.0 - 1.000 •
SCD 056-048-060 ACP8N 5.60 6.00 48.00 57.0 95.00 36.0 - 1.020 •
SCD 057-048-060 ACP8N 5.70 6.00 48.00 57.0 95.00 36.0 - 1.040 •
SCD 058-048-060 ACP8N 5.80 6.00 48.00 57.0 95.00 36.0 - 1.060 •
SCD 059-048-060 ACP8N 5.90 6.00 48.00 57.0 95.00 36.0 - 0.900 •
SCD 060-048-060 ACP8N 6.00 6.00 48.00 57.0 95.00 36.0 M7 1.090 •
SCD 061-064-080 ACP8N 6.10 8.00 64.00 76.0 114.00 36.0 - 1.110 •
SCD 062-064-080 ACP8N 6.20 8.00 64.00 76.0 114.00 36.0 - 1.130 •
SCD 063-064-080 ACP8N 6.30 8.00 64.00 76.0 114.00 36.0 - 1.150 •
SCD 064-064-080 ACP8N 6.40 8.00 64.00 76.0 114.00 36.0 - 1.160 •
SCD 065-064-080 ACP8N 6.50 8.00 64.00 76.0 114.00 36.0 - 1.180 •
SCD 066-064-080 ACP8N 6.60 8.00 64.00 76.0 114.00 36.0 - 1.200 •
SCD 067-064-080 ACP8N 6.70 8.00 64.00 76.0 114.00 36.0 - 1.220 •
SCD 068-064-080 ACP8N 6.80 8.00 64.00 76.0 114.00 36.0 M8 1.240 •
SCD 069-064-080 ACP8N 6.90 8.00 64.00 76.0 114.00 36.0 - 1.260 •
SCD 070-064-080 ACP8N 7.00 8.00 64.00 76.0 114.00 36.0 - 1.270 •
SCD 071-064-080 ACP8N 7.10 8.00 64.00 76.0 114.00 36.0 - 1.290 •
SCD 072-064-080 ACP8N 7.20 8.00 64.00 76.0 114.00 36.0 - 1.310 •
SCD 073-064-080 ACP8N 7.30 8.00 64.00 76.0 114.00 36.0 - 1.330 •
SCD 074-064-080 ACP8N 7.40 8.00 64.00 76.0 114.00 36.0 - 1.350 •
SCD 075-064-080 ACP8N 7.50 8.00 64.00 76.0 114.00 36.0 - 1.360 •
SCD 076-064-080 ACP8N 7.60 8.00 64.00 76.0 114.00 36.0 - 1.380 •
SCD 077-064-080 ACP8N 7.70 8.00 64.00 76.0 114.00 36.0 - 1.400 •
SCD 078-064-080 ACP8N 7.80 8.00 64.00 76.0 114.00 36.0 M9 1.420 •
SCD 079-064-080 ACP8N 7.90 8.00 64.00 76.0 114.00 36.0 - 1.440 •
SCD 080-064-080 ACP8N 8.00 8.00 64.00 76.0 114.00 36.0 - 1.460 •
SCD 081-080-100 ACP8N 8.10 10.00 80.00 95.0 142.00 40.0 - 1.470 •
SCD 082-080-100 ACP8N 8.20 10.00 80.00 95.0 142.00 40.0 - 1.490 •
SCD 083-080-100 ACP8N 8.30 10.00 80.00 95.0 142.00 40.0 - 1.510 •
SCD 084-080-100 ACP8N 8.40 10.00 80.00 95.0 142.00 40.0 - 1.530 •
SCD 085-080-100 ACP8N 8.50 10.00 80.00 95.0 142.00 40.0 M10 1.550 •
SCD 086-080-100 ACP8N 8.60 10.00 80.00 95.0 142.00 40.0 - 1.570 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size
