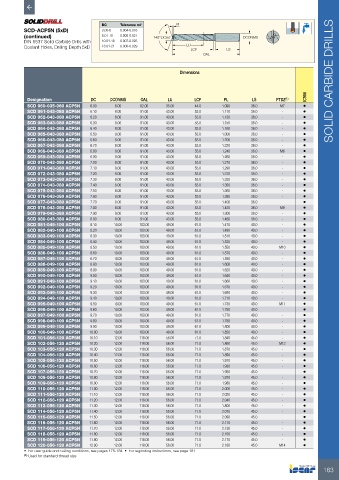

Page 165 - ISCAR(HOLE_MAKING_CATALOG_65)

DC Tolerance m7 PL

SCD-ACP5N (5xD) 3.00-6 0.004-0.016
(continued) 6.01-10 0.008-0.021 140° DCm7 DCONMS
DIN 6537 Solid Carbide Drills with 10.01-18 0.007-0.025
Coolant Holes, Drilling Depth 5xD 18.01-21 0.008-0.029 LU
LCF LS
OAL

Dimensions SOLID CARBIDE DRILLS

IC908
Designation DC DCONMS OAL LU LCF PL LS FTDZ (1)
SCD 060-035-060 ACP5N 6.00 6.00 82.00 35.00 44.0 1.090 36.0 M7 •
SCD 061-043-080 ACP5N 6.10 8.00 91.00 43.00 53.0 1.110 36.0 - •
SCD 062-043-080 ACP5N 6.20 8.00 91.00 43.00 53.0 1.130 36.0 - •
SCD 063-043-080 ACP5N 6.30 8.00 91.00 43.00 53.0 1.150 36.0 - •
SCD 064-043-080 ACP5N 6.40 8.00 91.00 43.00 53.0 1.160 36.0 - •
SCD 065-043-080 ACP5N 6.50 8.00 91.00 43.00 53.0 1.000 36.0 - •
SCD 066-043-080 ACP5N 6.60 8.00 91.00 43.00 53.0 1.200 36.0 - •
SCD 067-043-080 ACP5N 6.70 8.00 91.00 43.00 53.0 1.220 36.0 - •
SCD 068-043-080 ACP5N 6.80 8.00 91.00 43.00 53.0 1.240 36.0 M8 •
SCD 069-043-080 ACP5N 6.90 8.00 91.00 43.00 53.0 1.260 36.0 - •
SCD 070-043-080 ACP5N 7.00 8.00 91.00 43.00 53.0 1.270 36.0 - •
SCD 071-043-080 ACP5N 7.10 8.00 91.00 43.00 53.0 1.290 36.0 - •
SCD 072-043-080 ACP5N 7.20 8.00 91.00 43.00 53.0 1.310 36.0 - •
SCD 073-043-080 ACP5N 7.30 8.00 91.00 43.00 53.0 1.330 36.0 - •
SCD 074-043-080 ACP5N 7.40 8.00 91.00 43.00 53.0 1.350 36.0 - •
SCD 075-043-080 ACP5N 7.50 8.00 91.00 43.00 53.0 1.360 36.0 - •
SCD 076-043-080 ACP5N 7.60 8.00 91.00 43.00 53.0 1.380 36.0 - •
SCD 077-043-080 ACP5N 7.70 8.00 91.00 43.00 53.0 1.400 36.0 - •
SCD 078-043-080 ACP5N 7.80 8.00 91.00 43.00 53.0 1.420 36.0 M9 •
SCD 079-043-080 ACP5N 7.90 8.00 91.00 43.00 53.0 1.300 36.0 - •
SCD 080-043-080 ACP5N 8.00 8.00 91.00 43.00 53.0 1.460 36.0 - •
SCD 081-049-100 ACP5N 8.10 10.00 103.00 49.00 61.0 1.470 40.0 - •
SCD 082-049-100 ACP5N 8.20 10.00 103.00 49.00 61.0 1.490 40.0 - •
SCD 083-049-100 ACP5N 8.30 10.00 103.00 49.00 61.0 1.510 40.0 - •
SCD 084-049-100 ACP5N 8.40 10.00 103.00 49.00 61.0 1.530 40.0 - •
SCD 085-049-100 ACP5N 8.50 10.00 103.00 49.00 61.0 1.550 40.0 M10 •
SCD 086-049-100 ACP5N 8.60 10.00 103.00 49.00 61.0 1.570 40.0 - •
SCD 087-049-100 ACP5N 8.70 10.00 103.00 49.00 61.0 1.580 40.0 - •
SCD 088-049-100 ACP5N 8.80 10.00 103.00 49.00 61.0 1.600 40.0 - •
SCD 089-049-100 ACP5N 8.90 10.00 103.00 49.00 61.0 1.620 40.0 - •
SCD 090-049-100 ACP5N 9.00 10.00 103.00 49.00 61.0 1.640 40.0 - •
SCD 091-049-100 ACP5N 9.10 10.00 103.00 49.00 61.0 1.660 40.0 - •
SCD 092-049-100 ACP5N 9.20 10.00 103.00 49.00 61.0 1.670 40.0 - •
SCD 093-049-100 ACP5N 9.30 10.00 103.00 49.00 61.0 1.690 40.0 - •
SCD 094-049-100 ACP5N 9.40 10.00 103.00 49.00 61.0 1.710 40.0 - •
SCD 095-049-100 ACP5N 9.50 10.00 103.00 49.00 61.0 1.730 40.0 M11 •
SCD 096-049-100 ACP5N 9.60 10.00 103.00 49.00 61.0 1.750 40.0 - •
SCD 097-049-100 ACP5N 9.70 10.00 103.00 49.00 61.0 1.770 40.0 - •
SCD 098-049-100 ACP5N 9.80 10.00 103.00 49.00 61.0 1.780 40.0 - •
SCD 099-049-100 ACP5N 9.90 10.00 103.00 49.00 61.0 1.800 40.0 - •
SCD 100-049-100 ACP5N 10.00 10.00 103.00 49.00 61.0 1.820 40.0 - •
SCD 101-056-120 ACP5N 10.10 12.00 118.00 56.00 71.0 1.840 45.0 - •
SCD 102-056-120 ACP5N 10.20 12.00 118.00 56.00 71.0 1.860 45.0 M12 •
SCD 103-056-120 ACP5N 10.30 12.00 118.00 56.00 71.0 1.870 45.0 - •
SCD 104-056-120 ACP5N 10.40 12.00 118.00 56.00 71.0 1.890 45.0 - •
SCD 105-056-120 ACP5N 10.50 12.00 118.00 56.00 71.0 1.910 45.0 - •
SCD 106-056-120 ACP5N 10.60 12.00 118.00 56.00 71.0 1.930 45.0 - •
SCD 107-056-120 ACP5N 10.70 12.00 118.00 56.00 71.0 1.950 45.0 - •
SCD 108-056-120 ACP5N 10.80 12.00 118.00 56.00 71.0 1.970 45.0 - •
SCD 109-056-120 ACP5N 10.90 12.00 118.00 56.00 71.0 1.980 45.0 - •
SCD 110-056-120 ACP5N 11.00 12.00 118.00 56.00 71.0 2.000 45.0 - •
SCD 111-056-120 ACP5N 11.10 12.00 118.00 56.00 71.0 2.020 45.0 - •
SCD 112-056-120 ACP5N 11.20 12.00 118.00 56.00 71.0 2.040 45.0 - •
SCD 113-056-120 ACP5N 11.30 12.00 118.00 56.00 71.0 1.800 45.0 - •
SCD 114-056-120 ACP5N 11.40 12.00 118.00 56.00 71.0 2.070 45.0 - •
SCD 115-056-120 ACP5N 11.50 12.00 118.00 56.00 71.0 2.090 45.0 - •
SCD 116-056-120 ACP5N 11.60 12.00 118.00 56.00 71.0 2.110 45.0 - •
SCD 117-056-120 ACP5N 11.70 12.00 118.00 56.00 71.0 2.130 45.0 - •
SCD 118-056-120 ACP5N 11.80 12.00 118.00 56.00 71.0 2.150 45.0 - •
SCD 119-056-120 ACP5N 11.90 12.00 118.00 56.00 71.0 2.170 45.0 - •
SCD 120-056-120 ACP5N 12.00 12.00 118.00 56.00 71.0 2.180 45.0 M14 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size
