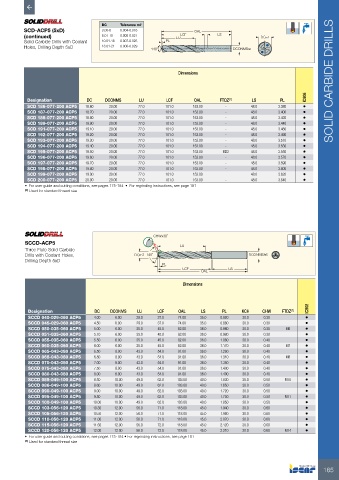

Page 167 - ISCAR(HOLE_MAKING_CATALOG_65)

DC Tolerance m7
SCD-ACP5 (5xD) 3.00-6 0.004-0.016 OAL
(continued) 6.01-10 0.008-0.021 LU LCF LS DCm7
Solid Carbide Drills with Coolant 10.01-18 0.007-0.025 PL
Holes, Drilling Depth 5xD 18.01-21 0.008-0.029 140˚ DCONMSh6

Dimensions SOLID CARBIDE DRILLS

IC908
Designation DC DCONMS LU LCF OAL FTDZ (1) LS PL
SCD 186-077-200 ACP5 18.60 20.00 77.0 101.0 153.00 - 48.0 3.380 •
SCD 187-077-200 ACP5 18.70 20.00 77.0 101.0 153.00 - 48.0 3.400 •
SCD 188-077-200 ACP5 18.80 20.00 77.0 101.0 153.00 - 48.0 3.420 •
SCD 189-077-200 ACP5 18.90 20.00 77.0 101.0 153.00 - 48.0 3.440 •
SCD 191-077-200 ACP5 19.10 20.00 77.0 101.0 153.00 - 48.0 3.480 •
SCD 192-077-200 ACP5 19.20 20.00 77.0 101.0 153.00 - 48.0 3.490 •
SCD 193-077-200 ACP5 19.30 20.00 77.0 101.0 153.00 - 48.0 3.510 •
SCD 194-077-200 ACP5 19.40 20.00 77.0 101.0 153.00 - 48.0 3.530 •
SCD 195-077-200 ACP5 19.50 20.00 77.0 101.0 153.00 M22 48.0 3.550 •
SCD 196-077-200 ACP5 19.60 20.00 77.0 101.0 153.00 - 48.0 3.570 •
SCD 197-077-200 ACP5 19.70 20.00 77.0 101.0 153.00 - 48.0 3.590 •
SCD 198-077-200 ACP5 19.80 20.00 77.0 101.0 153.00 - 48.0 3.600 •
SCD 199-077-200 ACP5 19.90 20.00 77.0 101.0 153.00 - 48.0 3.620 •
SCD 200-077-200 ACP5 20.00 20.00 77.0 101.0 153.00 - 48.0 3.640 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size

CHWx30˚

SCCD-ACP5 LU
Three Flute Solid Carbide
Drills with Coolant Holes, DCm7 140˚ DCONMSh6
Drilling Depth 5xD
PL
LCF LS
OAL
Dimensions

Designation DC DCONMS LU LCF OAL LS PL KCH CHW FTDZ (1) IC908
SCCD 040-029-060 ACP5 4.00 6.00 29.0 37.0 74.00 35.0 0.820 30.0 0.30 •
SCCD 045-029-060 ACP5 4.50 6.00 29.0 37.0 74.00 35.0 0.880 30.0 0.30 •
SCCD 050-035-060 ACP5 5.00 6.00 35.0 45.0 82.00 36.0 0.960 30.0 0.30 M6 •
SCCD 051-035-060 ACP5 5.10 6.00 35.0 45.0 82.00 36.0 0.980 30.0 0.30 •
SCCD 055-035-060 ACP5 5.50 6.00 35.0 45.0 82.00 36.0 1.080 30.0 0.40 •
SCCD 060-035-060 ACP5 6.00 6.00 35.0 45.0 82.00 36.0 1.170 30.0 0.40 M7 •
SCCD 065-043-080 ACP5 6.50 8.00 43.0 54.0 91.00 36.0 1.260 30.0 0.40 •
SCCD 068-043-080 ACP5 6.80 8.00 43.0 54.0 91.00 36.0 1.310 30.0 0.40 M8 •
SCCD 070-043-080 ACP5 7.00 8.00 43.0 54.0 91.00 36.0 1.350 30.0 0.40 •
SCCD 075-043-080 ACP5 7.50 8.00 43.0 54.0 91.00 36.0 1.400 30.0 0.40 •
SCCD 080-043-080 ACP5 8.00 8.00 43.0 54.0 91.00 36.0 1.490 30.0 0.40 •
SCCD 085-049-100 ACP5 8.50 10.00 49.0 62.0 103.00 40.0 1.630 30.0 0.50 M10 •
SCCD 086-049-100 ACP5 8.60 10.00 49.0 62.0 103.00 40.0 1.650 30.0 0.50 •
SCCD 090-049-100 ACP5 9.00 10.00 49.0 62.0 103.00 40.0 1.720 30.0 0.50 •
SCCD 095-049-100 ACP5 9.50 10.00 49.0 62.0 103.00 40.0 1.750 30.0 0.50 M11 •
SCCD 100-049-100 ACP5 10.00 10.00 49.0 62.0 103.00 40.0 1.850 30.0 0.50 •
SCCD 103-056-120 ACP5 10.30 12.00 56.0 71.0 118.00 45.0 1.940 30.0 0.60 •
SCCD 105-056-120 ACP5 10.50 12.00 56.0 71.0 118.00 45.0 1.980 30.0 0.60 •
SCCD 110-056-120 ACP5 11.00 12.00 56.0 71.0 118.00 45.0 2.070 30.0 0.60 •
SCCD 115-056-120 ACP5 11.50 12.00 56.0 72.0 118.00 45.0 2.120 30.0 0.60 •
SCCD 120-056-120 ACP5 12.00 12.00 56.0 72.0 118.00 45.0 2.210 30.0 0.60 M14 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size

165
