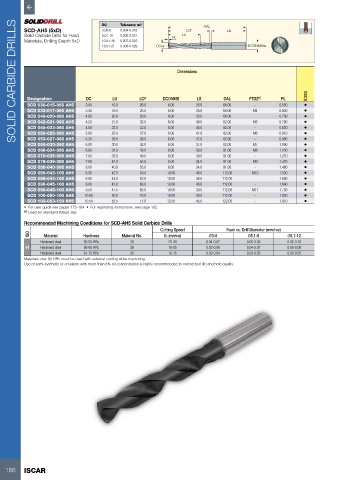

Page 168 - ISCAR(HOLE_MAKING_CATALOG_65)

SOLID CARBIDE DRILLS
DC Tolerance m7
OAL
SCD-AH5 (5xD) 3.00-6 0.004-0.016 LCF LS
Solid Carbide Drills for Hard 6.01-10 0.008-0.021 PL LU
Materials, Drilling Depth 5xD 10.01-18 0.007-0.025
18.01-21 0.008-0.029 DCm7 DCONMSh6

Dimensions

IC903
Designation DC LU LCF DCONMS LS OAL FTDZ (1) PL
SCD 030-015-060 AH5 3.00 15.0 26.0 6.00 35.0 66.00 - 0.550 •
SCD 033-017-060 AH5 3.30 16.5 26.0 6.00 35.0 66.00 M4 0.600 •
SCD 040-020-060 AH5 4.00 20.0 29.0 6.00 32.0 66.00 - 0.730 •
SCD 042-021-060 AH5 4.20 21.0 32.0 6.00 46.0 82.00 M5 0.760 •
SCD 045-023-060 AH5 4.50 22.5 32.0 6.00 46.0 82.00 - 0.820 •
SCD 050-025-060 AH5 5.00 25.0 37.0 6.00 41.0 82.00 M6 0.910 •
SCD 053-027-060 AH5 5.30 26.5 39.0 6.00 37.0 82.00 - 0.960 •
SCD 060-030-060 AH5 6.00 30.0 43.0 6.00 37.0 82.00 M7 1.090 •
SCD 068-034-080 AH5 6.80 34.0 49.0 8.00 39.0 91.00 M8 1.240 •
SCD 070-035-080 AH5 7.00 35.0 49.0 8.00 39.0 91.00 - 1.270 •
SCD 078-039-080 AH5 7.80 42.0 55.0 8.00 34.0 91.00 M9 1.420 •
SCD 080-040-080 AH5 8.00 40.0 55.0 8.00 34.0 91.00 - 1.460 •
SCD 085-043-100 AH5 8.50 42.5 59.0 10.00 46.0 112.00 M10 1.550 •
SCD 088-044-100 AH5 8.80 44.0 63.0 10.00 46.0 112.00 - 1.600 •
SCD 090-045-100 AH5 9.00 45.0 63.0 10.00 46.0 112.00 - 1.640 •
SCD 095-048-100 AH5 9.50 47.5 66.0 10.00 39.0 112.00 M11 1.730 •
SCD 100-050-100 AH5 10.00 50.0 70.0 10.00 39.0 112.00 - 1.820 •
SCD 105-053-120 AH5 10.50 52.5 71.0 12.00 45.0 122.00 - 1.910 •
• For user guide see pages 175-184 • For regrinding instructions, see page 182
(1) Used for standard thread size
Recommended Machining Conditions for SCD-AH5 Solid Carbide Drills
Cutting Speed Feed vs. Drill Diameter (mm/rev)
ISO Material Hardness Material No. Vc (m/min) Ø3-5 Ø5.1-8 Ø8.1-12
Hardened steel 50-55 HRc 38 25-40 0.04-0.07 0.05-0.08 0.06-0.10
H Hardened steel 56-60 HRc 39 15-25 0.03-0.06 0.04-0.07 0.05-0.08
Hardened steel 61-70 HRc 39 10-15 0.02-0.04 0.03-0.05 0.03-0.05
Materials over 50 HRc must be used with external cooling while machining.
Use of semi-synthetic or emulsion with more than 6% oil concentration is highly recommended to extend tool life and hole quality.

166 ISCAR
