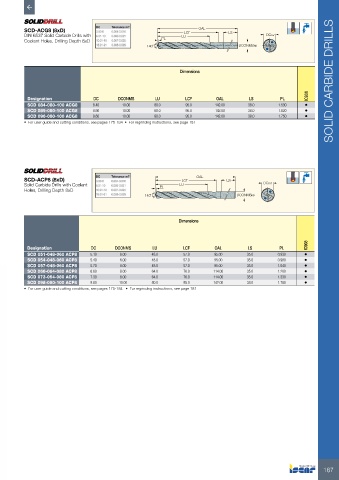

Page 169 - ISCAR(HOLE_MAKING_CATALOG_65)

SCD-ACG8 (8xD) LCF OAL LS
DIN 6537 Solid Carbide Drills with LU DCm7
Coolant Holes, Drilling Depth 8xD PL
140˚ DCONMSh6

Dimensions SOLID CARBIDE DRILLS

IC908
Designation DC DCONMS LU LCF OAL LS PL
SCD 084-080-100 ACG8 8.40 10.00 80.0 95.0 142.00 38.0 1.530 •
SCD 089-080-100 ACG8 8.90 10.00 80.0 95.0 142.00 38.0 1.620 •
SCD 096-080-100 ACG8 9.60 10.00 80.0 95.0 142.00 38.0 1.750 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181

OAL
SCD-ACP8 (8xD) LCF LS
Solid Carbide Drills with Coolant PL LU DCm7
Holes, Drilling Depth 8xD
140˚ DCONMSh6

Dimensions

IC908
Designation DC DCONMS LU LCF OAL LS PL
SCD 051-048-060 ACP8 5.10 6.00 48.0 57.0 95.00 35.0 0.930 •
SCD 054-048-060 ACP8 5.40 6.00 48.0 57.0 95.00 35.0 0.980 •
SCD 057-048-060 ACP8 5.70 6.00 48.0 57.0 95.00 35.0 1.040 •
SCD 066-064-080 ACP8 6.60 8.00 64.0 76.0 114.00 35.0 1.200 •
SCD 073-064-080 ACP8 7.30 8.00 64.0 76.0 114.00 35.0 1.330 •
SCD 098-080-100 ACP8 9.80 10.00 80.0 95.0 142.00 38.0 1.780 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181

167
