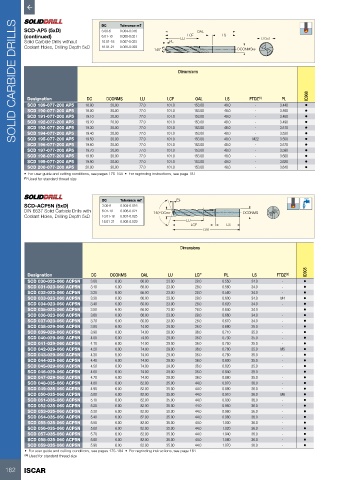

Page 164 - ISCAR(HOLE_MAKING_CATALOG_65)

SOLID CARBIDE DRILLS
DC Tolerance m7

SCD-AP5 (5xD) 3.00-6 0.004-0.016 OAL
(continued) 6.01-10 0.008-0.021 LU LCF LS DCm7
Solid Carbide Drills without 10.01-18 0.007-0.025 PL
Coolant Holes, Drilling Depth 5xD 18.01-21 0.008-0.029
140˚ DCONMSh6

Dimensions

IC908
Designation DC DCONMS LU LCF OAL LS FTDZ (1) PL
SCD 189-077-200 AP5 18.90 20.00 77.0 101.0 153.00 48.0 - 3.440 •
SCD 190-077-200 AP5 19.00 20.00 77.0 101.0 153.00 48.0 - 3.460 •
SCD 191-077-200 AP5 19.10 20.00 77.0 101.0 153.00 48.0 - 3.480 •
SCD 192-077-200 AP5 19.20 20.00 77.0 101.0 153.00 48.0 - 3.490 •
SCD 193-077-200 AP5 19.30 20.00 77.0 101.0 153.00 48.0 - 3.510 •
SCD 194-077-200 AP5 19.40 20.00 77.0 101.0 153.00 48.0 - 3.530 •
SCD 195-077-200 AP5 19.50 20.00 77.0 101.0 153.00 48.0 M22 3.550 •
SCD 196-077-200 AP5 19.60 20.00 77.0 101.0 153.00 48.0 - 3.570 •
SCD 197-077-200 AP5 19.70 20.00 77.0 101.0 153.00 48.0 - 3.590 •
SCD 198-077-200 AP5 19.80 20.00 77.0 101.0 153.00 48.0 - 3.600 •
SCD 199-077-200 AP5 19.90 20.00 77.0 101.0 153.00 48.0 - 3.620 •
SCD 200-077-200 AP5 20.00 20.00 77.0 101.0 153.00 48.0 - 3.640 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size

DC Tolerance m7 PL
SCD-ACP5N (5xD) 3.00-6 0.004-0.016
DIN 6537 Solid Carbide Drills with 6.01-10 0.008-0.021 140° DCm7 DCONMS
Coolant Holes, Drilling Depth 5xD 10.01-18 0.007-0.025
18.01-21 0.008-0.029 LU
LCF LS
OAL

Dimensions

IC908
Designation DC DCONMS OAL LU LCF PL LS FTDZ (1)
SCD 030-023-060 ACP5N 3.00 6.00 66.00 23.00 28.0 0.550 34.0 - •
SCD 031-023-060 ACP5N 3.10 6.00 66.00 23.00 28.0 0.560 34.0 - •
SCD 032-023-060 ACP5N 3.20 6.00 66.00 23.00 28.0 0.580 34.0 - •
SCD 033-023-060 ACP5N 3.30 6.00 66.00 23.00 28.0 0.600 34.0 M4 •
SCD 034-023-060 ACP5N 3.40 6.00 66.00 23.00 28.0 0.620 34.0 - •
SCD 035-023-060 ACP5N 3.50 6.00 66.00 23.00 28.0 0.640 34.0 - •
SCD 036-023-060 ACP5N 3.60 6.00 66.00 23.00 28.0 0.660 34.0 - •
SCD 037-023-060 ACP5N 3.70 6.00 66.00 23.00 28.0 0.670 34.0 - •
SCD 038-029-060 ACP5N 3.80 6.00 74.00 29.00 36.0 0.690 35.0 - •
SCD 039-029-060 ACP5N 3.90 6.00 74.00 29.00 36.0 0.710 35.0 - •
SCD 040-029-060 ACP5N 4.00 6.00 74.00 29.00 36.0 0.730 35.0 - •
SCD 041-029-060 ACP5N 4.10 6.00 74.00 29.00 36.0 0.750 35.0 - •
SCD 042-029-060 ACP5N 4.20 6.00 74.00 29.00 36.0 0.760 35.0 M5 •
SCD 043-029-060 ACP5N 4.30 6.00 74.00 29.00 36.0 0.780 35.0 - •
SCD 044-029-060 ACP5N 4.40 6.00 74.00 29.00 36.0 0.800 35.0 - •
SCD 045-029-060 ACP5N 4.50 6.00 74.00 29.00 36.0 0.820 35.0 - •
SCD 046-029-060 ACP5N 4.60 6.00 74.00 29.00 36.0 0.840 35.0 - •
SCD 047-029-060 ACP5N 4.70 6.00 74.00 29.00 36.0 0.860 35.0 - •
SCD 048-035-060 ACP5N 4.80 6.00 82.00 35.00 44.0 0.870 36.0 - •
SCD 049-035-060 ACP5N 4.90 6.00 82.00 35.00 44.0 0.890 36.0 - •
SCD 050-035-060 ACP5N 5.00 6.00 82.00 35.00 44.0 0.910 36.0 M6 •
SCD 051-035-060 ACP5N 5.10 6.00 82.00 35.00 44.0 0.930 36.0 - •
SCD 052-035-060 ACP5N 5.20 6.00 82.00 35.00 44.0 0.950 36.0 - •
SCD 053-035-060 ACP5N 5.30 6.00 82.00 35.00 44.0 0.960 36.0 - •
SCD 054-035-060 ACP5N 5.40 6.00 82.00 35.00 44.0 0.980 36.0 - •
SCD 055-035-060 ACP5N 5.50 6.00 82.00 35.00 44.0 1.000 36.0 - •
SCD 056-035-060 ACP5N 5.60 6.00 82.00 35.00 44.0 1.020 36.0 - •
SCD 057-035-060 ACP5N 5.70 6.00 82.00 35.00 44.0 1.040 36.0 - •
SCD 058-035-060 ACP5N 5.80 6.00 82.00 35.00 44.0 1.060 36.0 - •
SCD 059-035-060 ACP5N 5.90 6.00 82.00 35.00 44.0 1.070 36.0 - •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size
