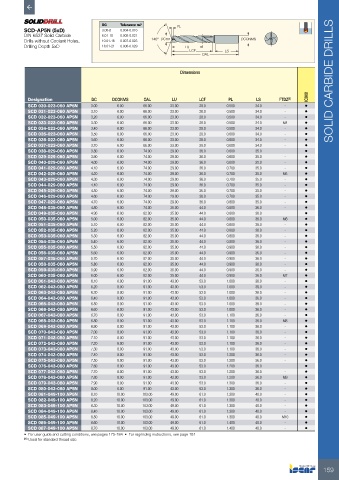

Page 161 - ISCAR(HOLE_MAKING_CATALOG_65)

DC Tolerance m7
PL
SCD-AP5N (5xD) 3.00-6 0.004-0.016
DIN 6537 Solid Carbide 6.01-10 0.008-0.021
Drills without Coolant Holes, 10.01-18 0.007-0.025 140° DCm7 DCONMS
Drilling Depth 5xD 18.01-21 0.008-0.029 LU
LCF LS
OAL

Dimensions SOLID CARBIDE DRILLS

IC908
Designation DC DCONMS OAL LU LCF PL LS FTDZ (1)
SCD 030-023-060 AP5N 3.00 6.00 66.00 23.00 28.0 0.500 34.0 - •
SCD 031-023-060 AP5N 3.10 6.00 66.00 23.00 28.0 0.500 34.0 - •
SCD 032-023-060 AP5N 3.20 6.00 66.00 23.00 28.0 0.500 34.0 - •
SCD 033-023-060 AP5N 3.30 6.00 66.00 23.00 28.0 0.500 34.0 M4 •
SCD 034-023-060 AP5N 3.40 6.00 66.00 23.00 28.0 0.500 34.0 - •
SCD 035-023-060 AP5N 3.50 6.00 66.00 23.00 28.0 0.600 34.0 - •
SCD 036-023-060 AP5N 3.60 6.00 66.00 23.00 28.0 0.600 34.0 - •
SCD 037-023-060 AP5N 3.70 6.00 66.00 23.00 28.0 0.600 34.0 - •
SCD 038-029-060 AP5N 3.80 6.00 74.00 29.00 36.0 0.600 35.0 - •
SCD 039-029-060 AP5N 3.90 6.00 74.00 29.00 36.0 0.600 35.0 - •
SCD 040-029-060 AP5N 4.00 6.00 74.00 29.00 36.0 0.600 35.0 - •
SCD 041-029-060 AP5N 4.10 6.00 74.00 29.00 36.0 0.700 35.0 - •
SCD 042-029-060 AP5N 4.20 6.00 74.00 29.00 36.0 0.700 35.0 M5 •
SCD 043-029-060 AP5N 4.30 6.00 74.00 29.00 36.0 0.700 35.0 - •
SCD 044-029-060 AP5N 4.40 6.00 74.00 29.00 36.0 0.700 35.0 - •
SCD 045-029-060 AP5N 4.50 6.00 74.00 29.00 36.0 0.700 35.0 - •
SCD 046-029-060 AP5N 4.60 6.00 74.00 29.00 36.0 0.700 35.0 - •
SCD 047-029-060 AP5N 4.70 6.00 74.00 29.00 36.0 0.800 35.0 - •
SCD 048-035-060 AP5N 4.80 6.00 74.00 35.00 44.0 0.800 36.0 - •
SCD 049-035-060 AP5N 4.90 6.00 82.00 35.00 44.0 0.800 36.0 - •
SCD 050-035-060 AP5N 5.00 6.00 82.00 35.00 44.0 0.800 36.0 M6 •
SCD 051-035-060 AP5N 5.10 6.00 82.00 35.00 44.0 0.800 36.0 - •
SCD 052-035-060 AP5N 5.20 6.00 82.00 35.00 44.0 0.800 36.0 - •
SCD 053-035-060 AP5N 5.30 6.00 82.00 35.00 44.0 0.800 36.0 - •
SCD 054-035-060 AP5N 5.40 6.00 82.00 35.00 44.0 0.800 36.0 - •
SCD 055-035-060 AP5N 5.50 6.00 82.00 35.00 44.0 0.900 36.0 - •
SCD 056-035-060 AP5N 5.60 6.00 82.00 35.00 44.0 0.900 36.0 - •
SCD 057-035-060 AP5N 5.70 6.00 82.00 35.00 44.0 0.900 36.0 - •
SCD 058-035-060 AP5N 5.80 6.00 82.00 35.00 44.0 0.900 36.0 - •
SCD 059-035-060 AP5N 5.90 6.00 82.00 35.00 44.0 0.900 36.0 - •
SCD 060-035-060 AP5N 6.00 6.00 82.00 35.00 44.0 0.900 36.0 M7 •
SCD 061-043-080 AP5N 6.10 8.00 91.00 43.00 53.0 1.000 36.0 - •
SCD 062-043-080 AP5N 6.20 8.00 91.00 43.00 53.0 1.000 36.0 - •
SCD 063-043-080 AP5N 6.30 8.00 91.00 43.00 53.0 1.000 36.0 - •
SCD 064-043-080 AP5N 6.40 8.00 91.00 43.00 53.0 1.000 36.0 - •
SCD 065-043-080 AP5N 6.50 8.00 91.00 43.00 53.0 1.000 36.0 - •
SCD 066-043-080 AP5N 6.60 8.00 91.00 43.00 53.0 1.000 36.0 - •
SCD 067-043-080 AP5N 6.70 8.00 91.00 43.00 53.0 1.100 36.0 - •
SCD 068-043-080 AP5N 6.80 8.00 91.00 43.00 53.0 1.100 36.0 M8 •
SCD 069-043-080 AP5N 6.90 8.00 91.00 43.00 53.0 1.100 36.0 - •
SCD 070-043-080 AP5N 7.00 8.00 91.00 43.00 53.0 1.100 36.0 - •
SCD 071-043-080 AP5N 7.10 8.00 91.00 43.00 53.0 1.100 36.0 - •
SCD 072-043-080 AP5N 7.20 8.00 91.00 43.00 53.0 1.100 36.0 - •
SCD 073-043-080 AP5N 7.30 8.00 91.00 43.00 53.0 1.100 36.0 - •
SCD 074-043-080 AP5N 7.40 8.00 91.00 43.00 53.0 1.200 36.0 - •
SCD 075-043-080 AP5N 7.50 8.00 91.00 43.00 53.0 1.200 36.0 - •
SCD 076-043-080 AP5N 7.60 8.00 91.00 43.00 53.0 1.200 36.0 - •
SCD 077-043-080 AP5N 7.70 8.00 91.00 43.00 53.0 1.200 36.0 - •
SCD 078-043-080 AP5N 7.80 8.00 91.00 43.00 53.0 1.200 36.0 M9 •
SCD 079-043-080 AP5N 7.90 8.00 91.00 43.00 53.0 1.300 36.0 - •
SCD 080-043-080 AP5N 8.00 8.00 91.00 43.00 53.0 1.300 36.0 - •
SCD 081-049-100 AP5N 8.10 10.00 103.00 49.00 61.0 1.300 40.0 - •
SCD 082-049-100 AP5N 8.20 10.00 103.00 49.00 61.0 1.300 40.0 - •
SCD 083-049-100 AP5N 8.30 10.00 103.00 49.00 61.0 1.300 40.0 - •
SCD 084-049-100 AP5N 8.40 10.00 103.00 49.00 61.0 1.300 40.0 - •
SCD 085-049-100 AP5N 8.50 10.00 103.00 49.00 61.0 1.300 40.0 M10 •
SCD 086-049-100 AP5N 8.60 10.00 103.00 49.00 61.0 1.400 40.0 - •
SCD 087-049-100 AP5N 8.70 10.00 103.00 49.00 61.0 1.400 40.0 - •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size

159
