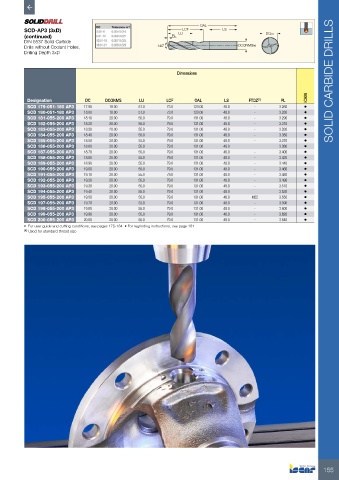

Page 157 - ISCAR(HOLE_MAKING_CATALOG_65)

OAL

SCD-AP3 (3xD) LCF LS
(continued) PL LU DCm7
DIN 6537 Solid Carbide
Drills without Coolant Holes, 140˚ DCONMSh6
Drilling Depth 3xD

Dimensions SOLID CARBIDE DRILLS

IC908
Designation DC DCONMS LU LCF OAL LS FTDZ (1) PL
SCD 179-051-180 AP3 17.90 18.00 51.0 73.0 123.00 48.0 - 3.260 •
SCD 180-051-180 AP3 18.00 18.00 51.0 73.0 123.00 48.0 - 3.280 •
SCD 181-055-200 AP3 18.10 20.00 55.0 79.0 131.00 48.0 - 3.290 •
SCD 182-055-200 AP3 18.20 20.00 55.0 79.0 131.00 48.0 - 3.310 •
SCD 183-055-200 AP3 18.30 20.00 55.0 79.0 131.00 48.0 - 3.330 •
SCD 184-055-200 AP3 18.40 20.00 55.0 79.0 131.00 48.0 - 3.350 •
SCD 185-055-200 AP3 18.50 20.00 55.0 79.0 131.00 48.0 - 3.370 •
SCD 186-055-200 AP3 18.60 20.00 55.0 79.0 131.00 48.0 - 3.380 •
SCD 187-055-200 AP3 18.70 20.00 55.0 79.0 131.00 48.0 - 3.400 •
SCD 188-055-200 AP3 18.80 20.00 55.0 79.0 131.00 48.0 - 3.420 •
SCD 189-055-200 AP3 18.90 20.00 55.0 79.0 131.00 48.0 - 3.440 •
SCD 190-055-200 AP3 19.00 20.00 55.0 79.0 131.00 48.0 - 3.460 •
SCD 191-055-200 AP3 19.10 20.00 55.0 79.0 131.00 48.0 - 3.480 •
SCD 192-055-200 AP3 19.20 20.00 55.0 79.0 131.00 48.0 - 3.490 •
SCD 193-055-200 AP3 19.30 20.00 55.0 79.0 131.00 48.0 - 3.510 •
SCD 194-055-200 AP3 19.40 20.00 55.0 79.0 131.00 48.0 - 3.530 •
SCD 195-055-200 AP3 19.50 20.00 55.0 79.0 131.00 48.0 M22 3.550 •
SCD 197-055-200 AP3 19.70 20.00 55.0 79.0 131.00 48.0 - 3.590 •
SCD 198-055-200 AP3 19.80 20.00 55.0 79.0 131.00 48.0 - 3.600 •
SCD 199-055-200 AP3 19.90 20.00 55.0 79.0 131.00 48.0 - 3.620 •
SCD 200-055-200 AP3 20.00 20.00 55.0 79.0 131.00 48.0 - 3.640 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size
