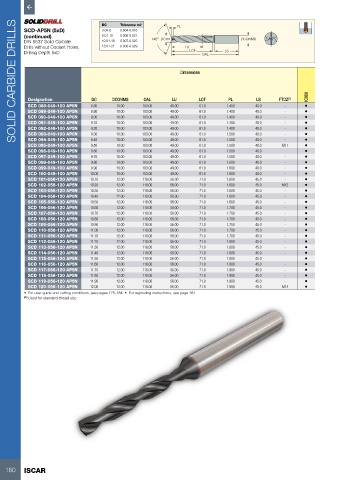

Page 162 - ISCAR(HOLE_MAKING_CATALOG_65)

SOLID CARBIDE DRILLS
DC Tolerance m7
PL
SCD-AP5N (5xD) 3.00-6 0.004-0.016
(continued) 6.01-10 0.008-0.021 DCONMS
DIN 6537 Solid Carbide 10.01-18 0.007-0.025 140° DCm7
Drills without Coolant Holes, 18.01-21 0.008-0.029 LU
Drilling Depth 5xD LCF OAL LS

Dimensions

IC908
Designation DC DCONMS OAL LU LCF PL LS FTDZ (1)
SCD 088-049-100 AP5N 8.80 10.00 103.00 49.00 61.0 1.400 40.0 - •
SCD 089-049-100 AP5N 8.90 10.00 103.00 49.00 61.0 1.400 40.0 - •
SCD 090-049-100 AP5N 9.00 10.00 103.00 49.00 61.0 1.400 40.0 - •
SCD 091-049-100 AP5N 9.10 10.00 103.00 49.00 61.0 1.400 40.0 - •
SCD 092-049-100 AP5N 9.20 10.00 103.00 49.00 61.0 1.400 40.0 - •
SCD 093-049-100 AP5N 9.30 10.00 103.00 49.00 61.0 1.500 40.0 - •
SCD 094-049-100 AP5N 9.40 10.00 103.00 49.00 61.0 1.500 40.0 - •
SCD 095-049-100 AP5N 9.50 10.00 103.00 49.00 61.0 1.500 40.0 M11 •
SCD 096-049-100 AP5N 9.60 10.00 103.00 49.00 61.0 1.500 40.0 - •
SCD 097-049-100 AP5N 9.70 10.00 103.00 49.00 61.0 1.500 40.0 - •
SCD 098-049-100 AP5N 9.80 10.00 103.00 49.00 61.0 1.600 40.0 - •
SCD 099-049-100 AP5N 9.90 10.00 103.00 49.00 61.0 1.600 40.0 - •
SCD 100-049-100 AP5N 10.00 10.00 103.00 49.00 61.0 1.600 40.0 - •
SCD 101-056-120 AP5N 10.10 12.00 118.00 56.00 71.0 1.600 45.0 - •
SCD 102-056-120 AP5N 10.20 12.00 118.00 56.00 71.0 1.600 45.0 M12 •
SCD 103-056-120 AP5N 10.30 12.00 118.00 56.00 71.0 1.600 45.0 - •
SCD 104-056-120 AP5N 10.40 12.00 118.00 56.00 71.0 1.600 45.0 - •
SCD 105-056-120 AP5N 10.50 12.00 118.00 56.00 71.0 1.600 45.0 - •
SCD 106-056-120 AP5N 10.60 12.00 118.00 56.00 71.0 1.700 45.0 - •
SCD 107-056-120 AP5N 10.70 12.00 118.00 56.00 71.0 1.700 45.0 - •
SCD 108-056-120 AP5N 10.80 12.00 118.00 56.00 71.0 1.700 45.0 - •
SCD 109-056-120 AP5N 10.90 12.00 118.00 56.00 71.0 1.700 45.0 - •
SCD 110-056-120 AP5N 11.00 12.00 118.00 56.00 71.0 1.700 45.0 - •
SCD 111-056-120 AP5N 11.10 12.00 118.00 56.00 71.0 1.700 45.0 - •
SCD 112-056-120 AP5N 11.20 12.00 118.00 56.00 71.0 1.800 45.0 - •
SCD 113-056-120 AP5N 11.30 12.00 118.00 56.00 71.0 1.800 45.0 - •
SCD 114-056-120 AP5N 11.40 12.00 118.00 56.00 71.0 1.800 45.0 - •
SCD 115-056-120 AP5N 11.50 12.00 118.00 56.00 71.0 1.800 45.0 - •
SCD 116-056-120 AP5N 11.60 12.00 118.00 56.00 71.0 1.800 45.0 - •
SCD 117-056-120 AP5N 11.70 12.00 118.00 56.00 71.0 1.900 45.0 - •
SCD 118-056-120 AP5N 11.80 12.00 118.00 56.00 71.0 1.900 45.0 - •
SCD 119-056-120 AP5N 11.90 12.00 118.00 56.00 71.0 1.900 45.0 - •
SCD 120-056-120 AP5N 12.00 12.00 118.00 56.00 71.0 1.900 45.0 M14 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size
