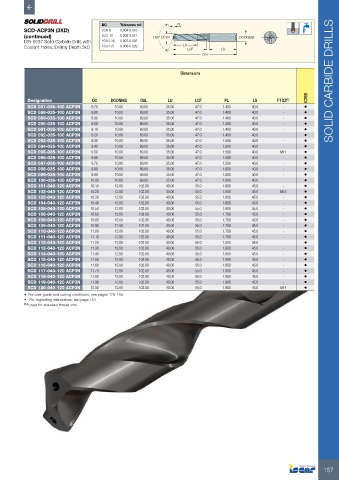

Page 159 - ISCAR(HOLE_MAKING_CATALOG_65)

DC Tolerance m7 PL

SCD-ACP3N (3XD) 3.00-6 0.004-0.016
(continued) 6.01-10 0.008-0.021 140° DCm7 DCONMS
DIN 6537 Solid Carbide Drills with 10.01-18 0.007-0.025
Coolant Holes, Drilling Depth 3xD 18.01-21 0.008-0.029 LU LCF LS
OAL

Dimensions SOLID CARBIDE DRILLS

IC908
Designation DC DCONMS OAL LU LCF PL LS FTDZ (1)
SCD 087-035-100 ACP3N 8.70 10.00 89.00 35.00 47.0 1.400 40.0 - •
SCD 088-035-100 ACP3N 8.80 10.00 89.00 35.00 47.0 1.400 40.0 - •
SCD 089-035-100 ACP3N 8.90 10.00 89.00 35.00 47.0 1.400 40.0 - •
SCD 090-035-100 ACP3N 9.00 10.00 89.00 35.00 47.0 1.400 40.0 - •
SCD 091-035-100 ACP3N 9.10 10.00 89.00 35.00 47.0 1.400 40.0 - •
SCD 092-035-100 ACP3N 9.20 10.00 89.00 35.00 47.0 1.400 40.0 - •
SCD 093-035-100 ACP3N 9.30 10.00 89.00 35.00 47.0 1.500 40.0 - •
SCD 094-035-100 ACP3N 9.40 10.00 89.00 35.00 47.0 1.500 40.0 - •
SCD 095-035-100 ACP3N 9.50 10.00 89.00 35.00 47.0 1.500 40.0 M11 •
SCD 096-035-100 ACP3N 9.60 10.00 89.00 35.00 47.0 1.500 40.0 - •
SCD 097-035-100 ACP3N 9.70 10.00 89.00 35.00 47.0 1.500 40.0 - •
SCD 098-035-100 ACP3N 9.80 10.00 89.00 35.00 47.0 1.600 40.0 - •
SCD 099-035-100 ACP3N 9.90 10.00 89.00 35.00 47.0 1.600 40.0 - •
SCD 100-035-100 ACP3N 10.00 10.00 89.00 35.00 47.0 1.600 40.0 - •
SCD 101-040-120 ACP3N 10.10 12.00 102.00 40.00 55.0 1.600 45.0 - •
SCD 102-040-120 ACP3N 10.20 12.00 102.00 40.00 55.0 1.600 45.0 M12 •
SCD 103-040-120 ACP3N 10.30 12.00 102.00 40.00 55.0 1.600 45.0 - •
SCD 104-040-120 ACP3N 10.40 12.00 102.00 40.00 55.0 1.600 45.0 - •
SCD 105-040-120 ACP3N 10.50 12.00 102.00 40.00 55.0 1.600 45.0 - •
SCD 106-040-120 ACP3N 10.60 12.00 102.00 40.00 55.0 1.700 45.0 - •
SCD 108-040-120 ACP3N 10.80 12.00 102.00 40.00 55.0 1.700 45.0 - •
SCD 109-040-120 ACP3N 10.90 12.00 102.00 40.00 55.0 1.700 45.0 - •
SCD 110-040-120 ACP3N 11.00 12.00 102.00 40.00 55.0 1.700 45.0 - •
SCD 111-040-120 ACP3N 11.10 12.00 102.00 40.00 55.0 1.700 45.0 - •
SCD 112-040-120 ACP3N 11.20 12.00 102.00 40.00 55.0 1.800 45.0 - •
SCD 113-040-120 ACP3N 11.30 12.00 102.00 40.00 55.0 1.800 45.0 - •
SCD 114-040-120 ACP3N 11.40 12.00 102.00 40.00 55.0 1.800 45.0 - •
SCD 115-040-120 ACP3N 11.50 12.00 102.00 40.00 55.0 1.800 45.0 - •
SCD 116-040-120 ACP3N 11.60 12.00 102.00 40.00 55.0 1.800 45.0 - •
SCD 117-040-120 ACP3N 11.70 12.00 102.00 40.00 55.0 1.900 45.0 - •
SCD 118-040-120 ACP3N 11.80 12.00 102.00 40.00 55.0 1.900 45.0 - •
SCD 119-040-120 ACP3N 11.90 12.00 102.00 40.00 55.0 1.900 45.0 - •
SCD 120-040-120 ACP3N 12.00 12.00 102.00 40.00 55.0 1.900 45.0 M14 •
• For user guide and cutting conditions, see pages 175-184
• For regrinding instructions, see page 181
(1) Used for standard thread size
