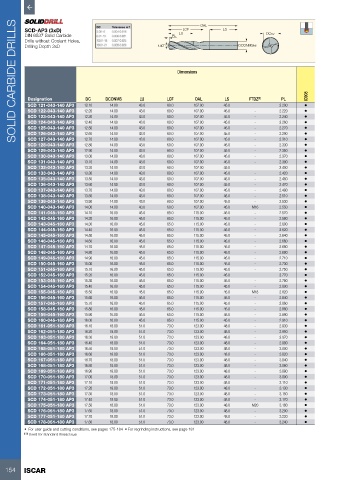

Page 156 - ISCAR(HOLE_MAKING_CATALOG_65)

SOLID CARBIDE DRILLS
OAL

SCD-AP3 (3xD) LCF LS
DIN 6537 Solid Carbide PL LU DCm7
Drills without Coolant Holes,
Drilling Depth 3xD 140˚ DCONMSh6

Dimensions

IC908
Designation DC DCONMS LU LCF OAL LS FTDZ (1) PL
SCD 121-043-140 AP3 12.10 14.00 43.0 60.0 107.00 45.0 - 2.200 •
SCD 122-043-140 AP3 12.20 14.00 43.0 60.0 107.00 45.0 - 2.220 •
SCD 123-043-140 AP3 12.30 14.00 43.0 60.0 107.00 45.0 - 2.240 •
SCD 124-043-140 AP3 12.40 14.00 43.0 60.0 107.00 45.0 - 2.260 •
SCD 125-043-140 AP3 12.50 14.00 43.0 60.0 107.00 45.0 - 2.270 •
SCD 126-043-140 AP3 12.60 14.00 43.0 60.0 107.00 45.0 - 2.290 •
SCD 127-043-140 AP3 12.70 14.00 43.0 60.0 107.00 45.0 - 2.310 •
SCD 128-043-140 AP3 12.80 14.00 43.0 60.0 107.00 45.0 - 2.330 •
SCD 129-043-140 AP3 12.90 14.00 43.0 60.0 107.00 45.0 - 2.350 •
SCD 130-043-140 AP3 13.00 14.00 43.0 60.0 107.00 45.0 - 2.370 •
SCD 131-043-140 AP3 13.10 14.00 43.0 60.0 107.00 45.0 - 2.380 •
SCD 132-043-140 AP3 13.20 14.00 43.0 60.0 107.00 45.0 - 2.400 •
SCD 133-043-140 AP3 13.30 14.00 43.0 60.0 107.00 45.0 - 2.420 •
SCD 135-043-140 AP3 13.50 14.00 43.0 60.0 107.00 45.0 - 2.460 •
SCD 136-043-140 AP3 13.60 14.00 43.0 60.0 107.00 45.0 - 2.470 •
SCD 137-043-140 AP3 13.70 14.00 43.0 60.0 107.00 45.0 - 2.490 •
SCD 138-043-140 AP3 13.80 14.00 43.0 60.0 107.00 45.0 - 2.510 •
SCD 139-043-140 AP3 13.90 14.00 43.0 60.0 107.00 45.0 - 2.530 •
SCD 140-043-140 AP3 14.00 14.00 43.0 60.0 107.00 45.0 M16 2.550 •
SCD 141-045-160 AP3 14.10 16.00 45.0 65.0 115.00 45.0 - 2.570 •
SCD 142-045-160 AP3 14.20 16.00 45.0 65.0 115.00 45.0 - 2.580 •
SCD 143-045-160 AP3 14.30 16.00 45.0 65.0 115.00 45.0 - 2.600 •
SCD 144-045-160 AP3 14.40 16.00 45.0 65.0 115.00 45.0 - 2.620 •
SCD 145-045-160 AP3 14.50 16.00 45.0 65.0 115.00 45.0 - 2.640 •
SCD 146-045-160 AP3 14.60 16.00 45.0 65.0 115.00 45.0 - 2.660 •
SCD 147-045-160 AP3 14.70 16.00 45.0 65.0 115.00 45.0 - 2.680 •
SCD 148-045-160 AP3 14.80 16.00 45.0 65.0 115.00 45.0 - 2.690 •
SCD 149-045-160 AP3 14.90 16.00 45.0 65.0 115.00 45.0 - 2.710 •
SCD 150-045-160 AP3 15.00 16.00 45.0 65.0 115.00 45.0 - 2.730 •
SCD 151-045-160 AP3 15.10 16.00 45.0 65.0 115.00 45.0 - 2.750 •
SCD 152-045-160 AP3 15.20 16.00 45.0 65.0 115.00 45.0 - 2.770 •
SCD 153-045-160 AP3 15.30 16.00 45.0 65.0 115.00 45.0 - 2.780 •
SCD 154-045-160 AP3 15.40 16.00 45.0 65.0 115.00 45.0 - 2.800 •
SCD 155-045-160 AP3 15.50 16.00 45.0 65.0 115.00 45.0 M18 2.820 •
SCD 156-045-160 AP3 15.60 16.00 45.0 65.0 115.00 45.0 - 2.840 •
SCD 157-045-160 AP3 15.70 16.00 45.0 65.0 115.00 45.0 - 2.860 •
SCD 158-045-160 AP3 15.80 16.00 45.0 65.0 115.00 45.0 - 2.880 •
SCD 159-045-160 AP3 15.90 16.00 45.0 65.0 115.00 45.0 - 2.890 •
SCD 160-045-160 AP3 16.00 16.00 45.0 65.0 115.00 45.0 - 2.910 •
SCD 161-051-180 AP3 16.10 18.00 51.0 73.0 123.00 48.0 - 2.930 •
SCD 162-051-180 AP3 16.20 18.00 51.0 73.0 123.00 48.0 - 2.950 •
SCD 163-051-180 AP3 16.30 18.00 51.0 73.0 123.00 48.0 - 2.970 •
SCD 164-051-180 AP3 16.40 18.00 51.0 73.0 123.00 48.0 - 2.980 •
SCD 165-051-180 AP3 16.50 18.00 51.0 73.0 123.00 48.0 - 3.000 •
SCD 166-051-180 AP3 16.60 18.00 51.0 73.0 123.00 48.0 - 3.020 •
SCD 167-051-180 AP3 16.70 18.00 51.0 73.0 123.00 48.0 - 3.040 •
SCD 168-051-180 AP3 16.80 18.00 51.0 73.0 123.00 48.0 - 3.060 •
SCD 169-051-180 AP3 16.90 18.00 51.0 73.0 123.00 48.0 - 3.080 •
SCD 170-051-180 AP3 17.00 18.00 51.0 73.0 123.00 48.0 - 3.090 •
SCD 171-051-180 AP3 17.10 18.00 51.0 73.0 123.00 48.0 - 3.110 •
SCD 172-051-180 AP3 17.20 18.00 51.0 73.0 123.00 48.0 - 3.130 •
SCD 173-051-180 AP3 17.30 18.00 51.0 73.0 123.00 48.0 - 3.150 •
SCD 174-051-180 AP3 17.40 18.00 51.0 73.0 123.00 48.0 - 3.170 •
SCD 175-051-180 AP3 17.50 18.00 51.0 73.0 123.00 48.0 M20 3.180 •
SCD 176-051-180 AP3 17.60 18.00 51.0 73.0 123.00 48.0 - 3.200 •
SCD 177-051-180 AP3 17.70 18.00 51.0 73.0 123.00 48.0 - 3.220 •
SCD 178-051-180 AP3 17.80 18.00 51.0 73.0 123.00 48.0 - 3.240 •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size
