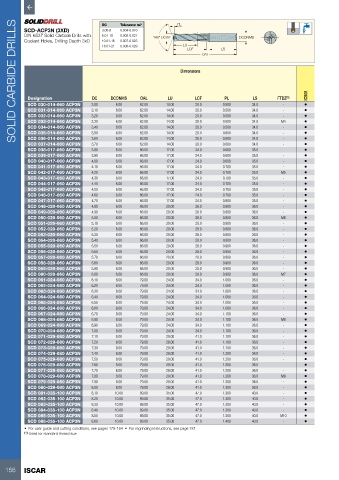

Page 158 - ISCAR(HOLE_MAKING_CATALOG_65)

SOLID CARBIDE DRILLS
DC Tolerance m7 PL

SCD-ACP3N (3XD) 3.00-6 0.004-0.016
DIN 6537 Solid Carbide Drills with 6.01-10 0.008-0.021 140° DCm7 DCONMS
Coolant Holes, Drilling Depth 3xD 10.01-18 0.007-0.025
18.01-21 0.008-0.029 LU
LCF LS
OAL

Dimensions

IC908
Designation DC DCONMS OAL LU LCF PL LS FTDZ (1)
SCD 030-014-060 ACP3N 3.00 6.00 62.00 14.00 20.0 0.500 34.0 - •
SCD 031-014-060 ACP3N 3.10 6.00 62.00 14.00 20.0 0.500 34.0 - •
SCD 032-014-060 ACP3N 3.20 6.00 62.00 14.00 20.0 0.500 34.0 - •
SCD 033-014-060 ACP3N 3.30 6.00 62.00 14.00 20.0 0.500 34.0 M4 •
SCD 034-014-060 ACP3N 3.40 6.00 62.00 14.00 20.0 0.500 34.0 - •
SCD 035-014-060 ACP3N 3.50 6.00 62.00 14.00 20.0 0.600 34.0 - •
SCD 036-014-060 ACP3N 3.60 6.00 62.00 14.00 20.0 0.600 34.0 - •
SCD 037-014-060 ACP3N 3.70 6.00 62.00 14.00 20.0 0.600 34.0 - •
SCD 038-017-060 ACP3N 3.80 6.00 66.00 17.00 24.0 0.600 35.0 - •
SCD 039-017-060 ACP3N 3.90 6.00 66.00 17.00 24.0 0.600 35.0 - •
SCD 040-017-060 ACP3N 4.00 6.00 66.00 17.00 24.0 0.600 35.0 - •
SCD 041-017-060 ACP3N 4.10 6.00 66.00 17.00 24.0 0.700 35.0 - •
SCD 042-017-060 ACP3N 4.20 6.00 66.00 17.00 24.0 0.700 35.0 M5 •
SCD 043-017-060 ACP3N 4.30 6.00 66.00 17.00 24.0 0.700 35.0 - •
SCD 044-017-060 ACP3N 4.40 6.00 66.00 17.00 24.0 0.700 35.0 - •
SCD 045-017-060 ACP3N 4.50 6.00 66.00 17.00 24.0 0.700 35.0 - •
SCD 046-017-060 ACP3N 4.60 6.00 66.00 17.00 24.0 0.700 35.0 - •
SCD 047-017-060 ACP3N 4.70 6.00 66.00 17.00 24.0 0.800 35.0 - •
SCD 048-020-060 ACP3N 4.80 6.00 66.00 20.00 28.0 0.800 36.0 - •
SCD 049-020-060 ACP3N 4.90 6.00 66.00 20.00 28.0 0.800 36.0 - •
SCD 050-020-060 ACP3N 5.00 6.00 66.00 20.00 28.0 0.800 36.0 M6 •
SCD 051-020-060 ACP3N 5.10 6.00 66.00 20.00 28.0 0.800 36.0 - •
SCD 052-020-060 ACP3N 5.20 6.00 66.00 20.00 28.0 0.800 36.0 - •
SCD 053-020-060 ACP3N 5.30 6.00 66.00 20.00 28.0 0.800 36.0 - •
SCD 054-020-060 ACP3N 5.40 6.00 66.00 20.00 28.0 0.800 36.0 - •
SCD 055-020-060 ACP3N 5.50 6.00 66.00 20.00 28.0 0.900 36.0 - •
SCD 056-020-060 ACP3N 5.60 6.00 66.00 20.00 28.0 0.900 36.0 - •
SCD 057-020-060 ACP3N 5.70 6.00 66.00 20.00 28.0 0.900 36.0 - •
SCD 058-020-060 ACP3N 5.80 6.00 66.00 20.00 28.0 0.900 36.0 - •
SCD 059-020-060 ACP3N 5.90 6.00 66.00 20.00 28.0 0.900 36.0 - •
SCD 060-020-060 ACP3N 6.00 6.00 66.00 20.00 28.0 0.900 36.0 M7 •
SCD 061-024-080 ACP3N 6.10 8.00 79.00 24.00 34.0 1.000 36.0 - •
SCD 062-024-080 ACP3N 6.20 8.00 79.00 24.00 34.0 1.000 36.0 - •
SCD 063-024-080 ACP3N 6.30 8.00 79.00 24.00 34.0 1.000 36.0 - •
SCD 064-024-080 ACP3N 6.40 8.00 79.00 24.00 34.0 1.000 36.0 - •
SCD 065-024-080 ACP3N 6.50 8.00 79.00 24.00 34.0 1.000 36.0 - •
SCD 066-024-080 ACP3N 6.60 8.00 79.00 24.00 34.0 1.000 36.0 - •
SCD 067-024-080 ACP3N 6.70 8.00 79.00 24.00 34.0 1.100 36.0 - •
SCD 068-024-080 ACP3N 6.80 8.00 79.00 24.00 34.0 1.100 36.0 M8 •
SCD 069-024-080 ACP3N 6.90 8.00 79.00 24.00 34.0 1.100 36.0 - •
SCD 070-024-080 ACP3N 7.00 8.00 79.00 24.00 34.0 1.100 36.0 - •
SCD 071-029-080 ACP3N 7.10 8.00 79.00 29.00 41.0 1.100 36.0 - •
SCD 072-029-080 ACP3N 7.20 8.00 79.00 29.00 41.0 1.100 36.0 - •
SCD 073-029-080 ACP3N 7.30 8.00 79.00 29.00 41.0 1.100 36.0 - •
SCD 074-029-080 ACP3N 7.40 8.00 79.00 29.00 41.0 1.200 36.0 - •
SCD 075-029-080 ACP3N 7.50 8.00 79.00 29.00 41.0 1.200 36.0 - •
SCD 076-029-080 ACP3N 7.60 8.00 79.00 29.00 41.0 1.200 36.0 - •
SCD 077-029-080 ACP3N 7.70 8.00 79.00 29.00 41.0 1.200 36.0 - •
SCD 078-029-080 ACP3N 7.80 8.00 79.00 29.00 41.0 1.200 36.0 M9 •
SCD 079-029-080 ACP3N 7.90 8.00 79.00 29.00 41.0 1.300 36.0 - •
SCD 080-029-080 ACP3N 8.00 8.00 79.00 29.00 41.0 1.300 36.0 - •
SCD 081-035-100 ACP3N 8.10 10.00 89.00 35.00 47.0 1.300 40.0 - •
SCD 082-035-100 ACP3N 8.20 10.00 89.00 35.00 47.0 1.300 40.0 - •
SCD 083-035-100 ACP3N 8.30 10.00 89.00 35.00 47.0 1.300 40.0 - •
SCD 084-035-100 ACP3N 8.40 10.00 89.00 35.00 47.0 1.300 40.0 - •
SCD 085-035-100 ACP3N 8.50 10.00 89.00 35.00 47.0 1.300 40.0 M10 •
SCD 086-035-100 ACP3N 8.60 10.00 89.00 35.00 47.0 1.400 40.0 - •
• For user guide and cutting conditions, see pages 175-184 • For regrinding instructions, see page 181
(1) Used for standard thread size
