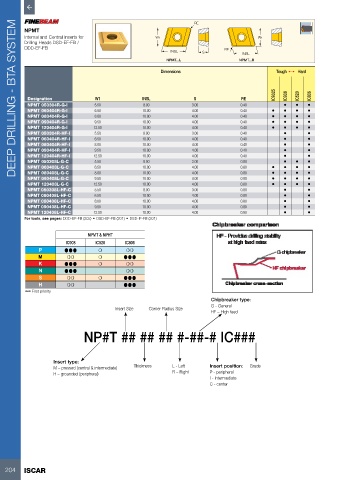

DEEP DRILLING - BTA SYSTEM
RE

NPMT
Internal and Central Inserts for W1 W1
Drilling Heads DSD-EF-FB /
DDD-EF-FB RE
INSL S INSL
NPMT...L NPMT...R
Dimensions Tough 1 Hard

IC9025 IC908 IC520 IC806
Designation W1 INSL S RE
NPMT 050304R-G-I 5.50 8.00 3.00 0.40 • • •
NPMT 060404R-G-I 6.50 10.00 4.00 0.40 • • • •
NPMT 080404R-G-I 8.00 10.00 4.00 0.40 • • • •
NPMT 090404R-G-I 9.50 10.00 4.00 0.40 • • • •
NPMT 120404R-G-I 12.50 10.00 4.00 0.40 • • • •
NPMT 050304R-HF-I 5.50 8.00 3.00 0.40 • •
NPMT 060404R-HF-I 6.50 10.00 4.00 0.40 • •
NPMT 080404R-HF-I 8.00 10.00 4.00 0.40 • •
NPMT 090404R-HF-I 9.50 10.00 4.00 0.40 • •
NPMT 120404R-HF-I 12.50 10.00 4.00 0.40 • •
NPMT 050308L-G-C 5.50 8.00 3.00 0.80 • • •
NPMT 060408L-G-C 6.50 10.00 4.00 0.80 • • • •
NPMT 080408L-G-C 8.00 10.00 4.00 0.80 • • • •
NPMT 090408L-G-C 9.50 10.00 4.00 0.80 • • • •
NPMT 120408L-G-C 12.50 10.00 4.00 0.80 • • • •
NPMT 050308L-HF-C 5.50 8.00 3.00 0.80 • •
NPMT 060408L-HF-C 6.50 10.00 4.00 0.80 • •
NPMT 080408L-HF-C 8.00 10.00 4.00 0.80 • •
NPMT 090408L-HF-C 9.50 10.00 4.00 0.80 • •
NPMT 120408L-HF-C 12.50 10.00 4.00 0.80 • •
For tools, see pages: DDD-EF-FB (202) • DSD-EF-FB (201) • DSD-IF-FB (201)

NPMT & NPHT
IC908 IC520 IC806
P

M

K

N

S

H

••• First priority
Chipbreaker type:
G - General
Insert Size Corner Radius Size
HF – High feed
NP#T ## ## ## #-##-# IC###

Insert type:
M – pressed (central & intermediate) Thickness L - Left Insert position: Grade
H – grounded (peripheral) R – Right P - peripheral
I - Intermediate
C - center
