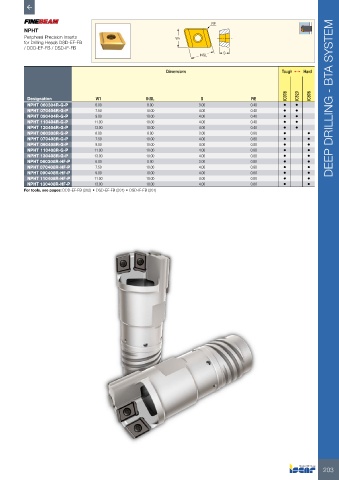

Page 205 - ISCAR(HOLE_MAKING_CATALOG_65)

RE

NPHT
Peripheral Precision Inserts W1
for Drilling Heads DSD-EF-FB
/ DDD-EF-FB / DSD-IF-FB
S
INSL

Dimensions Tough 1 Hard

IC908 IC520 IC806
Designation W1 INSL S RE DEEP DRILLING - BTA SYSTEM
NPHT 060304R-G-P 6.00 8.00 3.00 0.40 • •
NPHT 070404R-G-P 7.50 10.00 4.00 0.40 • •
NPHT 090404R-G-P 9.00 10.00 4.00 0.40 • •
NPHT 110404R-G-P 11.00 10.00 4.00 0.40 • •
NPHT 130404R-G-P 13.00 10.00 4.00 0.40 • •
NPHT 060308R-G-P 6.00 8.00 3.00 0.80 • •
NPHT 070408R-G-P 7.50 10.00 4.00 0.80 • •
NPHT 090408R-G-P 9.00 10.00 4.00 0.80 • •
NPHT 110408R-G-P 11.00 10.00 4.00 0.80 • •
NPHT 130408R-G-P 13.00 10.00 4.00 0.80 • •
NPHT 060308R-HF-P 6.00 8.00 3.00 0.80 • •
NPHT 070408R-HF-P 7.50 10.00 4.00 0.80 • •
NPHT 090408R-HF-P 9.00 10.00 4.00 0.80 • •
NPHT 110408R-HF-P 11.00 10.00 4.00 0.80 • •
NPHT 130408R-HF-P 13.00 10.00 4.00 0.80 • •
For tools, see pages: DDD-EF-FB (202) • DSD-EF-FB (201) • DSD-IF-FB (201)
