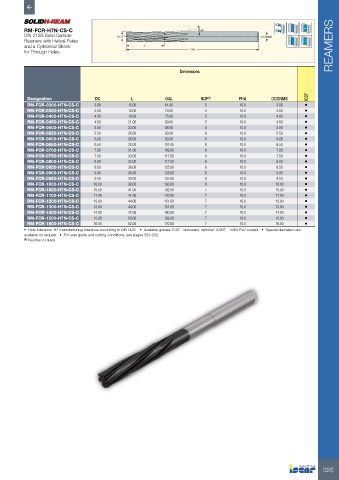

Page 327 - ISCAR(HOLE_MAKING_CATALOG_65)

RM-FCR-H7N-CS-C FHA°
DIN 212B Solid Carbide DC H7 DCONMS

Reamers with Helical Flutes
and a Cylindrical Shank L REAMERS
for Through Holes OAL

Dimensions

Designation DC L OAL NOF (1) FHA DCONMS IC07
RM-FCR-0300-H7N-CS-C 3.00 15.00 61.00 5 10.0 3.00 •
RM-FCR-0350-H7N-CS-C 3.50 18.00 70.00 5 10.0 3.50 •
RM-FCR-0400-H7N-CS-C 4.00 19.00 75.00 5 10.0 4.00 •
RM-FCR-0450-H7N-CS-C 4.50 21.00 80.00 5 10.0 4.50 •
RM-FCR-0500-H7N-CS-C 5.00 23.00 86.00 5 10.0 5.00 •
RM-FCR-0550-H7N-CS-C 5.50 26.00 93.00 6 10.0 5.50 •
RM-FCR-0600-H7N-CS-C 6.00 26.00 93.00 6 10.0 6.00 •
RM-FCR-0650-H7N-CS-C 6.50 28.00 101.00 6 10.0 6.50 •
RM-FCR-0700-H7N-CS-C 7.00 31.00 109.00 6 10.0 7.00 •
RM-FCR-0750-H7N-CS-C 7.50 33.00 117.00 6 10.0 7.50 •
RM-FCR-0800-H7N-CS-C 8.00 33.00 117.00 6 10.0 8.00 •
RM-FCR-0850-H7N-CS-C 8.50 36.00 125.00 6 10.0 8.50 •
RM-FCR-0900-H7N-CS-C 9.00 36.00 125.00 6 10.0 9.00 •
RM-FCR-0950-H7N-CS-C 9.50 38.00 133.00 6 10.0 9.50 •
RM-FCR-1000-H7N-CS-C 10.00 38.00 133.00 6 10.0 10.00 •
RM-FCR-1050-H7N-CS-C 10.50 41.00 142.00 7 10.0 10.50 •
RM-FCR-1100-H7N-CS-C 11.00 41.00 142.00 7 10.0 11.00 •
RM-FCR-1200-H7N-CS-C 12.00 44.00 151.00 7 10.0 12.00 •
RM-FCR-1300-H7N-CS-C 13.00 44.00 151.00 7 10.0 13.00 •
RM-FCR-1400-H7N-CS-C 14.00 47.00 160.00 7 10.0 14.00 •
RM-FCR-1500-H7N-CS-C 15.00 50.00 162.00 7 10.0 15.00 •
RM-FCR-1600-H7N-CS-C 16.00 52.00 170.00 7 10.0 16.00 •
• Hole tolerance: H7 manufacturing tolerance according to DIN1420 • Available grades: IC07 - uncoated, optional: IC907 - TiAlN PVD coated • Special diameters are
available on request • For user guide and cutting conditions, see pages 329-332
(1) Number of flutes
