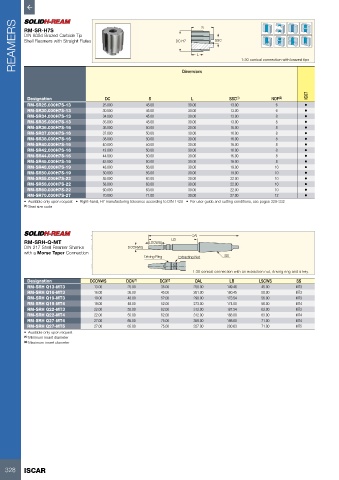

Page 330 - ISCAR(HOLE_MAKING_CATALOG_65)

REAMERS RM-SR-H7S DC H7 L S SSC 1:30 conical connection with brazed tips

DIN 8054 Brazed Carbide Tip
Shell Reamers with Straight Flutes

Dimensions

IC07
Designation DC S L SSC (1) NOF (2)
RM-SR25.000H7S-13 25.000 45.00 30.00 13.00 6 •
RM-SR30.000H7S-13 30.000 45.00 30.00 13.00 6 •
RM-SR34.000H7S-13 34.000 45.00 30.00 13.00 8 •
RM-SR35.000H7S-13 35.000 45.00 30.00 13.00 8 •
RM-SR36.000H7S-16 36.000 50.00 30.00 16.00 8 •
RM-SR37.000H7S-16 37.000 50.00 30.00 16.00 8 •
RM-SR38.000H7S-16 38.000 50.00 30.00 16.00 8 •
RM-SR40.000H7S-16 40.000 50.00 30.00 16.00 8 •
RM-SR42.000H7S-16 42.000 50.00 30.00 16.00 8 •
RM-SR44.000H7S-16 44.000 50.00 30.00 16.00 8 •
RM-SR45.000H7S-16 45.000 50.00 30.00 16.00 8 •
RM-SR48.000H7S-19 48.000 56.00 30.00 19.00 10 •
RM-SR50.000H7S-19 50.000 56.00 30.00 19.00 10 •
RM-SR55.000H7S-22 55.000 63.00 30.00 22.00 10 •
RM-SR58.000H7S-22 58.000 63.00 30.00 22.00 10 •
RM-SR60.000H7S-22 60.000 63.00 30.00 22.00 10 •
RM-SR70.000H7S-27 70.000 71.00 30.00 27.00 12 •
• Available only upon request • Right-hand, H7 manufacturing tolerance according to DIN 1420 • For user guide and cutting conditions, see pages 329-332
(1) Seat size code

OAL
LB
RM-SRH-Q-MT LSCWS
DIN 217 Shell Reamer Shanks DCONWS
with a Morse Taper Connection
Driving Ring Extracting Nut SS

1:30 conical connection with an extraction nut, driving ring and a key.
Designation DCONWS DCN (1) DCX (2) OAL LB LSCWS SS
RM-SRH Q13-MT3 13.00 25.00 35.00 250.00 149.46 45.00 MT3
RM-SRH Q16-MT3 16.00 36.00 45.00 261.00 160.45 50.00 MT3
RM-SRH Q19-MT3 19.00 48.00 52.00 298.00 173.54 56.00 MT3
RM-SRH Q19-MT4 19.00 48.00 52.00 273.00 174.00 56.00 MT4
RM-SRH Q22-MT3 22.00 55.00 62.00 312.00 187.54 63.00 MT3
RM-SRH Q22-MT4 22.00 55.00 62.00 312.00 188.00 63.00 MT4
RM-SRH Q27-MT4 27.00 65.00 75.00 359.00 198.80 71.00 MT4
RM-SRH Q27-MT5 27.00 65.00 75.00 327.00 200.63 71.00 MT5
• Available only upon request
(1) Minimum insert diameter
(2) Maximum insert diameter
