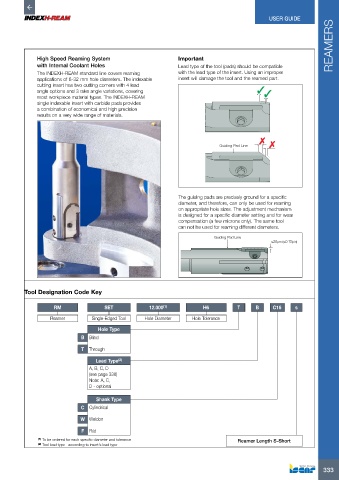

USER GUIDE
REAMERS

High Speed Reaming System Important
with Internal Coolant Holes Lead type of the tool (pads) should be compatible
The INDEXH-REAM standard line covers reaming with the lead type of the insert. Using an improper
applications of 8-32 mm hole diameters. The indexable insert will damage the tool and the reamed part.
cutting insert has two cutting corners with 4 lead
angle options and 3 rake angle variations, covering
most workpiece material types. The INDEXH-REAM
single indexable insert with carbide pads provides
a combination of economical and high precision
results on a very wide range of materials.

Guiding Pad Line

The guiding pads are precisely ground for a specific
diameter, and therefore, can only be used for reaming
on appropriate hole sizes. The adjustment mechanism
is designed for a specific diameter setting and for wear
compensation (a few microns only). The same tool
can not be used for reaming different diameters.

Guiding Pad Line
≤20µm (≤0.75µin)

Tool Designation Code Key

RM SET 12.000 (1) H6 T B C16 s
Reamer Single-Edged Tool Hole Diameter Hole Tolerance

Hole Type
B Blind

T Through
Lead Type (2)
A, B, C, D
(see page 338)
Note: A, C,
D - optional

Shank Type
C Cylindrical
W Weldon

F Flat
(1) To be ordered for each specific diameter and tolerance Reamer Length S-Short
(2) Tool lead type - according to insert’s lead type
