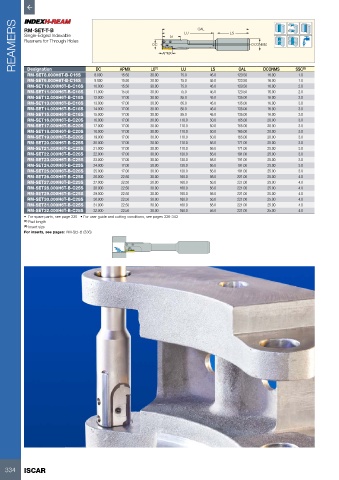

REAMERS RM-SET-T-B DC APMX L6 LU OAL LS DCONMS
Single-Edged Indexable
Reamers for Through Holes
Designation
(1)
L6
DC
LU
OAL
LS
15.50
1.0
RM-SET8.000H6T-B-C16S 8.000 APMX 30.00 75.0 45.0 123.50 DCONMS SSC (2)
16.00
RM-SET9.000H6T-B-C16S 9.000 15.50 30.00 75.0 45.0 123.50 16.00 1.0
RM-SET10.000H6T-B-C16S 10.000 15.50 30.00 75.0 45.0 123.50 16.00 2.0
RM-SET11.000H6T-B-C16S 11.000 15.50 30.00 75.0 45.0 123.50 16.00 2.0
RM-SET12.000H6T-B-C16S 12.000 17.00 30.00 85.0 45.0 135.00 16.00 3.0
RM-SET13.000H6T-B-C16S 13.000 17.00 30.00 85.0 45.0 135.00 16.00 3.0
RM-SET14.000H6T-B-C16S 14.000 17.00 30.00 85.0 45.0 135.00 16.00 3.0
RM-SET15.000H6T-B-C16S 15.000 17.00 30.00 85.0 45.0 135.00 16.00 3.0
RM-SET16.000H6T-B-C20S 16.000 17.00 30.00 110.0 50.0 165.00 20.00 3.0
RM-SET17.000H6T-B-C20S 17.000 17.00 30.00 110.0 50.0 165.00 20.00 3.0
RM-SET18.000H6T-B-C20S 18.000 17.00 30.00 110.0 50.0 165.00 20.00 3.0
RM-SET19.000H6T-B-C20S 19.000 17.00 30.00 110.0 50.0 165.00 20.00 3.0
RM-SET20.000H6T-B-C25S 20.000 17.00 30.00 110.0 56.0 171.00 25.00 3.0
RM-SET21.000H6T-B-C25S 21.000 17.00 30.00 110.0 56.0 171.00 25.00 3.0
RM-SET22.000H6T-B-C25S 22.000 17.00 30.00 130.0 56.0 191.00 25.00 3.0
RM-SET23.000H6T-B-C25S 23.000 17.00 30.00 130.0 56.0 191.00 25.00 3.0
RM-SET24.000H6T-B-C25S 24.000 17.00 30.00 130.0 56.0 191.00 25.00 3.0
RM-SET25.000H6T-B-C25S 25.000 17.00 30.00 130.0 56.0 191.00 25.00 3.0
RM-SET26.000H6T-B-C25S 26.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET27.000H6T-B-C25S 27.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET28.000H6T-B-C25S 28.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET29.000H6T-B-C25S 29.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET30.000H6T-B-C25S 30.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET31.000H6T-B-C25S 31.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
RM-SET32.000H6T-B-C25S 32.000 22.50 30.00 160.0 56.0 221.00 25.00 4.0
• For spare parts, see page 335 • For user guide and cutting conditions, see pages 338-343
(1) Pad length
(2) Insert size
For inserts, see pages: RM-SEI-B (336)
