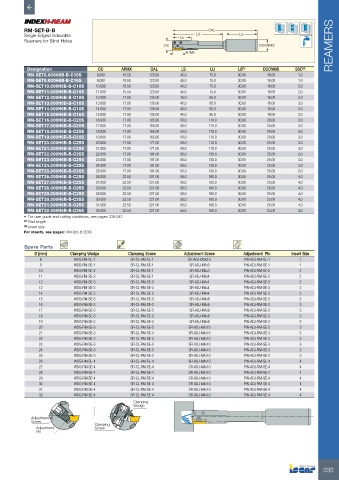

Page 337 - ISCAR(HOLE_MAKING_CATALOG_65)

RM-SET-B-B OAL
Single-Edged Indexable L6 LU LS
Reamers for Blind Holes
DC DCONMS REAMERS
APMX

Designation DC APMX OAL LS LU L6 (1) DCONMS SSC (2)
RM-SET8.000H6B-B-C16S 8.000 15.50 123.50 45.0 75.0 30.00 16.00 1.0
RM-SET9.000H6B-B-C16S 9.000 15.50 123.50 45.0 75.0 30.00 16.00 1.0
RM-SET10.000H6B-B-C16S 10.000 15.50 123.50 45.0 75.0 30.00 16.00 2.0
RM-SET11.000H6B-B-C16S 11.000 15.50 123.50 45.0 75.0 30.00 16.00 2.0
RM-SET12.000H6B-B-C16S 12.000 17.00 135.00 45.0 85.0 30.00 16.00 3.0
RM-SET13.000H6B-B-C16S 13.000 17.00 135.00 45.0 85.0 30.00 16.00 3.0
RM-SET14.000H6B-B-C16S 14.000 17.00 135.00 45.0 85.0 30.00 16.00 3.0
RM-SET15.000H6B-B-C16S 15.000 17.00 135.00 45.0 85.0 30.00 16.00 3.0
RM-SET16.000H6B-B-C20S 16.000 17.00 165.00 50.0 110.0 30.00 20.00 3.0
RM-SET17.000H6B-B-C20S 17.000 17.00 165.00 50.0 110.0 30.00 20.00 3.0
RM-SET18.000H6B-B-C20S 18.000 17.00 165.00 50.0 110.0 30.00 20.00 3.0
RM-SET19.000H6B-B-C20S 19.000 17.00 165.00 50.0 110.0 30.00 20.00 3.0
RM-SET20.000H6B-B-C25S 20.000 17.00 171.00 56.0 110.0 30.00 25.00 3.0
RM-SET21.000H6B-B-C25S 21.000 17.00 171.00 56.0 110.0 30.00 25.00 3.0
RM-SET22.000H6B-B-C25S 22.000 17.00 191.00 56.0 130.0 30.00 25.00 3.0
RM-SET23.000H6B-B-C25S 23.000 17.00 191.00 56.0 130.0 30.00 25.00 3.0
RM-SET24.000H6B-B-C25S 24.000 17.00 191.00 56.0 130.0 30.00 25.00 3.0
RM-SET25.000H6B-B-C25S 25.000 17.00 191.00 56.0 130.0 30.00 25.00 3.0
RM-SET26.000H6B-B-C25S 26.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET27.000H6B-B-C25S 27.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET28.000H6B-B-C25S 28.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET29.000H6B-B-C25S 29.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET30.000H6B-B-C25S 30.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET31.000H6B-B-C25S 31.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
RM-SET32.000H6B-B-C25S 32.000 22.50 221.00 56.0 160.0 30.00 25.00 4.0
• For user guide and cutting conditions, see pages 338-343
(1) Pad length
(2) Insert size
For inserts, see pages: RM-SEI-B (336)

Spare Parts
D [mm] Clamping Wedge Clamping Screw Adjustment Screw Adjustment Pin Insert Size
8 WDG-RM-SE-1 SR-CL-RM-SE-1 SR-ADJ-M3x2.5 PIN-ADJ-RM-SE-1 1
9 WDG-RM-SE-1 SR-CL-RM-SE-1 SR-ADJ-M3x3 PIN-ADJ-RM-SE-1 1
10 WDG-RM-SE-2 SR-CL-RM-SE-1 SR-ADJ-M3x3 PIN-ADJ-RM-SE-2 2
11 WDG-RM-SE-2 SR-CL-RM-SE-1 SR-ADJ-M3x4 PIN-ADJ-RM-SE-2 2
12 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3
13 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3
14 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x4 PIN-ADJ-RM-SE-3 3
15 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x6 PIN-ADJ-RM-SE-3 3
16 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x6 PIN-ADJ-RM-SE-3 3
17 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3
18 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3
19 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x8 PIN-ADJ-RM-SE-3 3
20 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
21 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
22 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
23 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
24 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
25 WDG-RM-SE-3 SR-CL-RM-SE-3 SR-ADJ-M4x10 PIN-ADJ-RM-SE-3 3
26 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
27 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
28 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
29 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
Adjustment
30 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
Screw
31 WDG-RM-SE-4 SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
32 WDG-RM-SE-4 Adjustment SR-CL-RM-SE-4 SR-ADJ-M4x10 PIN-ADJ-RM-SE-4 4
Pin
Clamping
Wedge
Adjustment
Screw
Clamping
Adjustment Screw
Pin

Clamping
Wedge
Clamping
Screw
335
