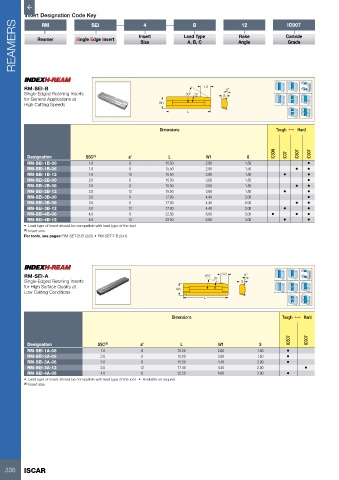

Page 338 - ISCAR(HOLE_MAKING_CATALOG_65)

Insert Designation Code Key 4 B 12 IC907
REAMERS Reamer Single Edge Insert Insert Lead Type Angle Carbide
SEI
RM
Rake
Grade
Size
A, B, C

RM-SEI-B 1.3 a°
Single-Edged Reaming Inserts 30° 3° S
for General Applications at
High Cutting Speeds W1
L

Dimensions Tough 1 Hard

IC30N IC507 IC907
Designation SSC (1) a° L W1 S IC07
RM-SEI-1B-00 1.0 0 15.50 2.80 1.50 •
RM-SEI-1B-06 1.0 6 15.50 2.80 1.50 • •
RM-SEI-1B-12 1.0 12 15.50 2.80 1.50 • •
RM-SEI-2B-00 2.0 0 15.50 3.60 1.50 •
RM-SEI-2B-06 2.0 6 15.50 3.60 1.50 • •
RM-SEI-2B-12 2.0 12 15.50 3.60 1.50 • •
RM-SEI-3B-00 3.0 0 17.00 4.40 2.00 •
RM-SEI-3B-06 3.0 6 17.00 4.40 2.00 • •
RM-SEI-3B-12 3.0 12 17.00 4.40 2.00 • •
RM-SEI-4B-06 4.0 6 22.50 6.60 3.00 • • •
RM-SEI-4B-12 4.0 12 22.50 6.60 3.00 • •
• Lead type of insert should be compatible with lead type of the tool
(1) Insert size
For tools, see pages: RM-SET-B-B (335) • RM-SET-T-B (334)

RM-SEI-A 15° 3° 3.0 a°
Single-Edged Reaming Inserts S
for High Surface Quality at
Low Cutting Conditions W1
L

Dimensions Tough 1 Hard

IC507 IC907
Designation SSC (1) a° L W1 S
RM-SEI-1A-06 1.0 6 15.50 2.80 1.50 •
RM-SEI-2A-06 2.0 6 15.50 3.60 1.50 •
RM-SEI-3A-06 3.0 6 15.50 4.40 2.00 •
RM-SEI-3A-12 3.0 12 17.00 4.40 2.00 •
RM-SEI-4A-06 4.0 6 22.50 6.60 3.00 •
• Lead type of insert should be compatible with lead type of the tool • Available on request
(1) Insert size

336 ISCAR
