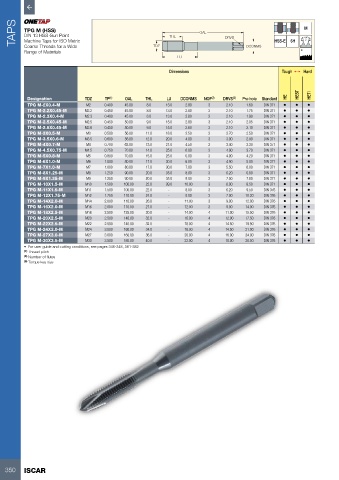

Page 352 - ISCAR(HOLE_MAKING_CATALOG_65)

TAPS TPG M (HSS) THL OAL DRVS HSS-E 6H M P

DIN 13 HSS Gun Point
60˚
Machine Taps for ISO Metric
Coarse Threads for a Wide
Range of Materials TDZ DCONMS B
LU

Dimensions Tough 1 Hard

Designation TDZ TP (1) OAL THL LU DCONMS NOF (2) DRVS (3) Pre-hole Standard HE HEST HETI
TPG M-2X0.4-M M2 0.400 45.00 8.0 13.0 2.80 3 2.10 1.60 DIN 371 • • •
TPG M-2.2X0.45-M M2.2 0.450 45.00 8.0 13.0 2.80 3 2.10 1.75 DIN 371 • • •
TPG M-2.3X0.4-M M2.3 0.400 45.00 8.0 13.0 2.80 3 2.10 1.90 DIN 371 • • •
TPG M-2.5X0.45-M M2.5 0.450 50.00 9.0 15.0 2.80 3 2.10 2.05 DIN 371 • • •
TPG M-2.6X0.45-M M2.6 0.450 50.00 9.0 15.0 2.80 3 2.10 2.10 DIN 371 • • •
TPG M-3X0.5-M M3 0.500 56.00 11.0 18.0 3.50 3 2.70 2.50 DIN 371 • • •
TPG M-3.5X0.6-M M3.5 0.600 56.00 12.0 20.0 4.00 3 3.00 2.90 DIN 371 • • •
TPG M-4X0.7-M M4 0.700 63.00 13.0 21.0 4.50 3 3.40 3.30 DIN 371 • • •
TPG M-4.5X0.75-M M4.5 0.750 70.00 14.0 25.0 6.00 3 4.90 3.70 DIN 371 • • •
TPG M-5X0.8-M M5 0.800 70.00 15.0 25.0 6.00 3 4.90 4.20 DIN 371 • • •
TPG M-6X1.0-M M6 1.000 80.00 17.0 30.0 6.00 3 4.90 5.00 DIN 371 • • •
TPG M-7X1.0-M M7 1.000 80.00 17.0 30.0 7.00 3 5.50 6.00 DIN 371 • • •
TPG M-8X1.25-M M8 1.250 90.00 20.0 35.0 8.00 3 6.20 6.80 DIN 371 • • •
TPG M-9X1.25-M M9 1.250 90.00 20.0 35.0 9.00 3 7.00 7.80 DIN 371 • • •
TPG M-10X1.5-M M10 1.500 100.00 22.0 39.0 10.00 3 8.00 8.50 DIN 371 • • •
TPG M-11X1.5-M M11 1.500 100.00 22.0 - 8.00 3 6.20 9.50 DIN 376 • • •
TPG M-12X1.75-M M12 1.750 110.00 24.0 - 9.00 3 7.00 10.20 DIN 376 • • •
TPG M-14X2.0-M M14 2.000 110.00 26.0 - 11.00 3 9.00 12.00 DIN 376 • • •
TPG M-16X2.0-M M16 2.000 110.00 27.0 - 12.00 3 9.00 14.00 DIN 376 • • •
TPG M-18X2.5-M M18 2.500 125.00 30.0 - 14.00 4 11.00 15.50 DIN 376 • • •
TPG M-20X2.5-M M20 2.500 140.00 32.0 - 16.00 4 12.00 17.50 DIN 376 • • •
TPG M-22X2.5-M M22 2.500 140.00 32.0 - 18.00 4 14.50 19.50 DIN 376 • • •
TPG M-24X3.0-M M24 3.000 160.00 34.0 - 18.00 4 14.50 21.00 DIN 376 • • •
TPG M-27X3.0-M M27 3.000 160.00 36.0 - 20.00 4 16.00 24.00 DIN 376 • • •
TPG M-30X3.5-M M30 3.500 180.00 40.0 - 22.00 4 18.00 26.50 DIN 376 • • •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Thread pitch
(2) Number of flutes
(3) Torque key size
