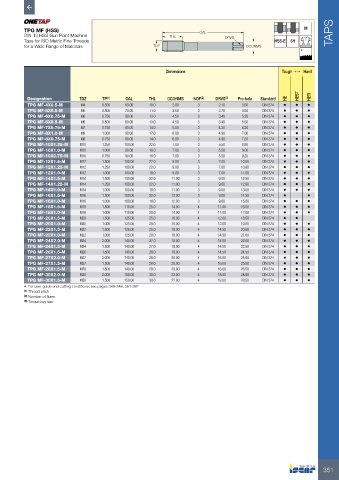

Page 353 - ISCAR(HOLE_MAKING_CATALOG_65)
P. 353
M
TPG MF (HSS) OAL
DIN 13 HSS Gun Point Machine THL TAPS
Taps for ISO Metric Fine Threads DRVS HSS-E 6H 60˚ P
for a Wide Range of Materials TDZ DCONMS
B
Dimensions Tough 1 Hard
Designation TDZ TP (1) OAL THL DCONMS NOF (2) DRVS (3) Pre-hole Standard HE HEST HETI
TPG MF-4X0.5-M M4 0.500 63.00 10.0 2.80 3 2.10 3.50 DIN 374 • • •
TPG MF-5X0.5-M M5 0.500 70.00 11.0 3.50 3 2.70 4.50 DIN 374 • • •
TPG MF-6X0.75-M M6 0.750 80.00 13.0 4.50 3 3.40 5.20 DIN 374 • • •
TPG MF-6X0.5-M M6 0.500 80.00 13.0 4.50 3 3.40 5.50 DIN 374 • • •
TPG MF-7X0.75-M M7 0.750 80.00 14.0 5.50 3 4.30 6.20 DIN 374 • • •
TPG MF-8X1.0-M M8 1.000 90.00 17.0 6.00 3 4.90 7.00 DIN 374 • • •
TPG MF-8X0.75-M M8 0.750 80.00 14.0 6.00 3 4.90 7.20 DIN 374 • • •
TPG MF-10X1.25-M M10 1.250 100.00 22.0 7.00 3 5.50 8.80 DIN 374 • • •
TPG MF-10X1.0-M M10 1.000 90.00 18.0 7.00 3 5.50 9.00 DIN 374 • • •
TPG MF-10X0.75-M M10 0.750 90.00 18.0 7.00 3 5.50 9.20 DIN 374 • • •
TPG MF-12X1.5-M M12 1.500 100.00 22.0 9.00 3 7.00 10.50 DIN 374 • • •
TPG MF-12X1.25-M M12 1.250 100.00 22.0 9.00 3 7.00 10.80 DIN 374 • • •
TPG MF-12X1.0-M M12 1.000 100.00 18.0 9.00 3 7.00 11.00 DIN 374 • • •
TPG MF-14X1.5-M M14 1.500 100.00 22.0 11.00 3 9.00 12.50 DIN 374 • • •
TPG MF-14X1.25-M M14 1.250 100.00 22.0 11.00 3 9.00 12.80 DIN 374 • • •
TPG MF-14X1.0-M M14 1.000 100.00 18.0 11.00 3 9.00 13.00 DIN 374 • • •
TPG MF-16X1.5-M M16 1.500 100.00 22.0 12.00 3 9.00 14.50 DIN 374 • •
TPG MF-16X1.0-M M16 1.000 100.00 18.0 12.00 3 9.00 15.00 DIN 374 • • •
TPG MF-18X1.5-M M18 1.500 110.00 25.0 14.00 4 11.00 16.50 DIN 374 • • •
TPG MF-18X1.0-M M18 1.000 110.00 20.0 14.00 4 11.00 17.00 DIN 374 • • •
TPG MF-20X1.5-M M20 1.500 125.00 25.0 16.00 4 12.00 18.50 DIN 374 • •
TPG MF-20X1.0-M M20 1.000 125.00 20.0 16.00 4 12.00 19.00 DIN 374 • • •
TPG MF-22X1.5-M M22 1.500 125.00 25.0 18.00 4 14.50 20.50 DIN 374 • • •
TPG MF-22X1.0-M M22 1.000 125.00 20.0 18.00 4 14.50 21.00 DIN 374 • • •
TPG MF-24X2.0-M M24 2.000 140.00 27.0 18.00 4 14.50 22.00 DIN 374 • • •
TPG MF-24X1.5-M M24 1.500 140.00 27.0 18.00 4 14.50 22.50 DIN 374 • • •
TPG MF-26X1.5-M M26 1.500 140.00 28.0 18.00 4 14.50 24.50 DIN 374 • • •
TPG MF-27X2.0-M M27 2.000 140.00 28.0 20.00 4 16.00 25.00 DIN 374 • • •
TPG MF-27X1.5-M M27 1.500 140.00 28.0 20.00 4 16.00 25.50 DIN 374 • • •
TPG MF-28X1.5-M M28 1.500 140.00 28.0 20.00 4 16.00 26.50 DIN 374 • • •
TPG MF-30X2.0-M M30 2.000 150.00 30.0 22.00 4 18.00 28.00 DIN 374 • • •
TPG MF-30X1.5-M M30 1.500 150.00 30.0 22.00 4 18.00 28.50 DIN 374 • • •
• For user guide and cutting conditions, see pages 346-348, 361-382
(1) Thread pitch
(2) Number of flutes
(3) Torque key size
