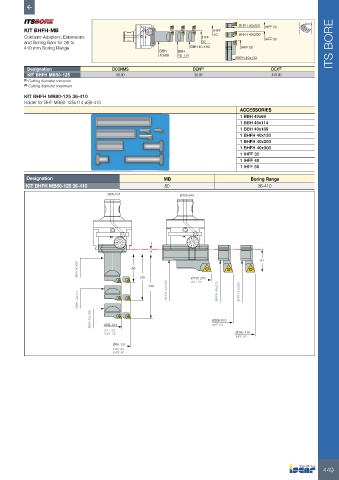

BHFH 40x300 IHFF 50 KITS
KIT BHFH-MB 9 0 1 2 IHFF
8 6 7 5 3 4 40 BHFH 40x200
Contains Adapters, Extensions IHFF IHFF 50
and Boring Bars for 36 to 32 ITS BORE
410 mm Boring Range BBH 40-189 IHFF 50
BBH BBH
40x69 40-114
BHFH 40x133
Designation DCONMS DCN (1) DCX (2)
KIT BHFH MB80-125 80.00 36.00 410.00
(1) Cutting diameter minimum
(2) Cutting diameter maximum
KIT BHFH MB80-125 36-410
Holder for BHF MB80-125x114 ø36-410
ACCESSORIES
1 BBH 40x69
1 BBH 40x114
1 BBH 40x189
1 BHFH 40x133
1 BHFH 40x200
1 BHFH 40x300
1 IHFF 32
1 IHFF 40
1 IHFF 50
Designation MB Boring Range
KIT BHFH MB80-125 36-410 80 36-410
Ø36-137 Ø135-410

8 9 8 9 0
7 0 7
6 1 2 6 1 2
5 4 3 5 4 3
9
51
BBH 40x69 80 125

IHFF 50
200 BHFH 40x133 Ø135-210 BHFH 40x200 BHFH 40x300
BBH 40x114

BBH 40x189 Ø36-123 Ø205-310

IHFF 50
IHFF 32
IHRF 32 Ø305-410
IHFF 50
Ø46-137
IHFF 40
IHRF 40
