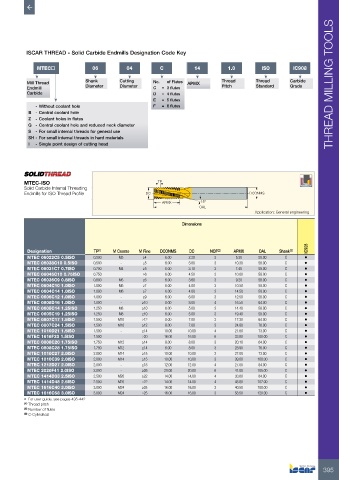

Page 397 - ISCAR(MILLINGCATALOG 38_2021)
P. 397
ISCAR THREAD - Solid Carbide Endmills Designation Code Key
MTEC 06 04 C 14 1.0 ISO IC908
Shank Cutting Thread Thread Carbide
Mill Thread No. of Flutes APMX THREAD MILLING TOOLS
Endmill Diameter Diameter C = 3 flutes Pitch Standard Grade
Carbide D = 4 flutes
E = 5 flutes
- Without coolant hole F = 6 flutes
B - Central coolant hole
Z - Coolant holes in flutes
Q - Central coolant hole and reduced neck diameter
S - For small internal threads for general use
SH - For small internal threads in hard materials
I - Single point design of cutting head
MTEC-ISO TP
Solid Carbide Internal Threading
Endmills for ISO Thread Profile DC DCONMS
APMX 15°
OAL
Application: General engineering
Dimensions
IC908
Designation TP (1) M Coarse M Fine DCONMS DC NOF (2) APMX OAL Shank (3)
MTEC 06022C5 0.5ISO 0.500 M3 ≥4 6.00 2.20 3 5.30 58.00 C •
MTEC 06038C10 0.5ISO 0.500 - ≥5 6.00 3.80 3 10.30 58.00 C •
MTEC 06031C7 0.7ISO 0.700 M4 ≥5 6.00 3.10 3 7.40 58.00 C •
MTEC 06045C10 0.75ISO 0.750 - ≥6 6.00 4.50 3 10.00 58.00 C •
MTEC 06036C9 0.8ISO 0.800 M5 ≥6 6.00 3.60 3 9.20 58.00 C •
MTEC 0604C10 1.0ISO 1.000 M6 ≥7 6.00 4.00 3 10.50 58.00 C •
MTEC 0604C14 1.0ISO 1.000 M6 ≥7 6.00 4.00 3 14.50 58.00 C •
MTEC 0606C12 1.0ISO 1.000 - ≥9 6.00 6.00 3 12.50 58.00 C •
MTEC 0808D16 1.0ISO 1.000 - ≥10 8.00 8.00 4 16.50 64.00 C •
MTEC 0605C14 1.25ISO 1.250 M8 ≥10 6.00 5.00 3 14.40 58.00 C •
MTEC 0605C19 1.25ISO 1.250 M8 ≥10 6.00 5.00 3 19.40 58.00 C •
MTEC 0807C17 1.5ISO 1.500 M10 ≥12 8.00 7.00 3 17.30 64.00 C •
MTEC 0807C24 1.5ISO 1.500 M10 ≥12 8.00 7.00 3 24.80 76.00 C •
NUT
TP
MTEC 1010D21 1.5ISO 1.500 - ≥14 10.00 10.00 4 21.80 73.00 C •
TP/4
MTEC 1616F33 1.5ISO 1.500 - ≥20 16.00 16.00 6 33.80 100.00 C •
MTEC 0808C20 1.75ISO 1.750 M12 ≥14 8.00 8.00 3 20.10 64.00 C •
60˚
TP/8
MTEC 0808C28 1.75ISO 1.750 M12 ≥14 8.00 8.00 3 28.90 76.00 C •
SCREW
MTEC 1010C27 2.0ISO 2.000 M14 ≥15 10.00 10.00 3 27.00 73.00 C •
MTEC 1010C39 2.0ISO 2.000 M14 ≥15 10.00 10.00 3 39.00 100.00 C •
MTEC 1212D27 2.0ISO 2.000 - ≥18 12.00 12.00 4 27.00 84.00 C •
MTEC 2020F41 2.0ISO 2.000 - ≥26 20.00 20.00 6 41.00 105.00 C •
MTEC 1414D33 2.5ISO 2.500 M20 ≥22 14.00 14.00 4 33.80 84.00 C •
MTEC 1414D48 2.5ISO 2.500 M20 ≥22 14.00 14.00 4 48.80 107.00 C •
MTEC 1616C40 3.0ISO 3.000 M24 ≥25 16.00 16.00 3 40.50 100.00 C •
MTEC 1616C58 3.0ISO 3.000 M24 ≥25 16.00 16.00 3 58.50 120.00 C •
• For user guide, see pages 435-442
(1) Thread pitch
(2) Number of flutes
(3) C-Cylindrical
