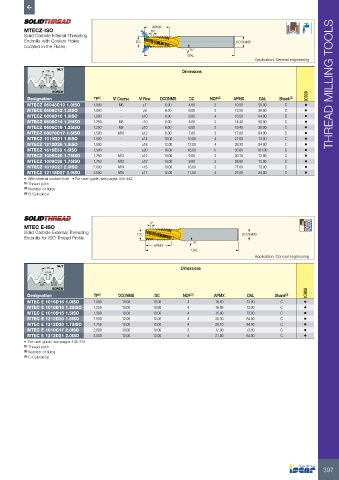

APMX
MTECZ-ISO TP
Solid Carbide Internal Threading
Endmills with Coolant Holes DC DCONMS
Located in the Flutes
15°
OAL
Application: General engineering
NUT
TP Dimensions
TP/4
60˚ TP/8 THREAD MILLING TOOLS
SCREW
Designation TP (1) M Coarse M Fine DCONMS DC NOF (2) APMX OAL Shank (3) IC908
MTECZ 06048C10 1.0ISO 1.000 M6 ≥7 6.00 4.80 3 10.50 58.00 C •
MTECZ 0606C12 1.0ISO 1.000 - ≥9 6.00 6.00 3 12.50 58.00 C •
MTECZ 0808D16 1.0ISO 1.000 - ≥10 8.00 8.00 4 16.50 64.00 C •
MTECZ 0606C14 1.25ISO 1.250 M8 ≥10 6.00 6.00 3 14.40 58.00 C •
MTECZ 0606C19 1.25ISO 1.250 M8 ≥10 6.00 6.00 3 19.40 58.00 C •
MTECZ 08078C17 1.5ISO 1.500 M10 ≥12 8.00 7.80 3 17.00 64.00 C •
MTECZ 1010D21 1.5ISO 1.500 - ≥14 10.00 10.00 4 21.80 73.00 C •
MTECZ 1212D26 1.5ISO 1.500 - ≥16 12.00 12.00 4 26.30 84.00 C •
MTECZ 1616E33 1.5ISO 1.500 - ≥20 16.00 16.00 5 33.80 101.00 C •
MTECZ 1009C20 1.75ISO 1.750 M12 ≥12 10.00 9.00 3 20.10 73.00 C •
MTECZ 1009C28 1.75ISO 1.750 M12 ≥12 10.00 9.00 3 28.90 73.00 C •
MTECZ 1010C27 2.0ISO 2.000 M14 ≥15 10.00 10.00 3 27.00 73.00 C •
MTECZ 12118D27 2.0ISO 2.000 M16 ≥17 12.00 11.80 4 27.00 84.00 C •
• With internal coolant hole • For user guide, see pages 435-442
(1) Thread pitch
(2) Number of flutes
(3) C-Cylindrical

TP

MTEC E-ISO
Solid Carbide External Threading DC DCONMS
Endmills for ISO Thread Profile
APMX
OAL
Application: General engineering
NUT
TP Dimensions
TP/4
60˚ TP/8
SCREW
Designation TP (1) DCONMS DC NOF (2) APMX OAL Shank (3) IC908
MTEC E 1010D16 1.0ISO 1.000 10.00 10.00 4 16.50 73.00 C •
MTEC E 1010D16 1.25ISO 1.250 10.00 10.00 4 16.90 73.00 C •
MTEC E 1010D15 1.5ISO 1.500 10.00 10.00 4 15.80 73.00 C •
MTEC E 1212D20 1.5ISO 1.500 12.00 12.00 4 20.30 84.00 C •
MTEC E 1212D20 1.75ISO 1.750 12.00 12.00 4 20.10 84.00 C •
MTEC E 1010C17 2.0ISO 2.000 10.00 10.00 3 17.00 73.00 C •
MTEC E 1212D21 2.0ISO 2.000 12.00 12.00 4 21.00 84.00 C •
• For user guide, see pages 435-442
(1) Thread pitch
(2) Number of flutes
(3) C-Cylindrical
