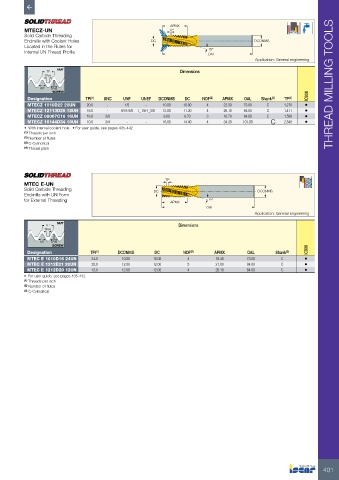

P. 403

APMX

          MTECZ-UN                                           TP
          Solid Carbide Threading
          Endmills with Coolant Holes                 DC                                  DCONMS
          Located in the Flutes for                                       15°
          Internal UN Thread Profile                                      OAL
                                                                                           Application: General engineering
                     NUT
                 TP                                             Dimensions
                 TP/4
               60˚  TP/8                                                                                              THREAD MILLING TOOLS
                   SCREW
           Designation         TPI (1)  UNC  UNF   UNEF  DCONMS   DC    NOF (2)  APMX  OAL   Shank (3)  TP (4)  IC908
           MTECZ 1010D22 20UN   20.0   -     1/2    -     10.00  10.00    4     22.30  73.00   C     1.270  •
           MTECZ 12113D26 18UN  18.0   -   9/16-5/8  1_1/8-1_5/8  12.00  11.30  4  26.10  84.00  C   1.411  •
           MTECZ 08067C16 16UN  16.0  3/8    -      -     8.00    6.70    3     16.70  64.00   C     1.588  •
           MTECZ 16144D34 10UN  10.0  3/4    -      -     16.00  14.40    4     34.30  101.00   C    2.540  •
          •  With internal coolant hole   • For user guide, see pages 435-442
          (1)  Threads per inch
          (2)  Number of flutes
          (3)  C-Cylindrical
          (4)  Thread pitch




                                                           TP

          MTEC E-UN
          Solid Carbide Threading                      DC                                  DCONMS
          Endmills with UN Form
          for External Threading                             APMX
                                                                          OAL
                                                                                           Application: General engineering
                     NUT
                 TP                                             Dimensions
                 TP/4

               60˚  TP/8
                   SCREW
           Designation           TPI (1)  DCONMS       DC        NOF (2)    APMX        OAL       Shank (3)  IC908
           MTEC E 1010D16 24UN   24.0       10.00      10.00       4         16.40      73.00       C       •
           MTEC E 1212E21 20UN   20.0       12.00      12.00       5         21.00      84.00       C       •
           MTEC E 1212D20 12UN   12.0       12.00      12.00       4         20.10      84.00       C       •
          •  For user guide, see pages 435-442
          (1)  Threads per inch
          (2)  Number of flutes
          (3)  C-Cylindrical
