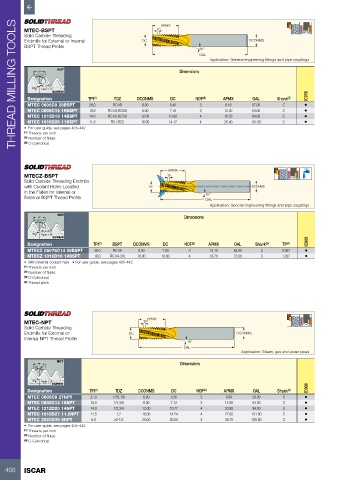

Page 408 - ISCAR(MILLINGCATALOG 38_2021)
P. 408

THREAD MILLING TOOLS
                                                          APMX

          MTEC-BSPT                                     TP
          Solid Carbide Threading
          Endmills for External or Internal        DC                                   DCONMS
          BSPT Thread Profile
                                                                       15°
                                                                       OAL
                                                                           Application: General engineering fittings and pipe couplings
                     NUT
              TP                                                Dimensions
             27.5˚ 27.5˚
                RE=0.137TP
            90˚  Taper 1:16
                   SCREW
           Designation          TPI (1)  TDZ     DCONMS      DC       NOF (2)  APMX       OAL     Shank (3)  IC908
           MTEC 0606C9 28BSPT   28.0     RC1/8     6.00      5.40      3        8.16      57.00     C       •
           MTEC 0808C14 19BSPT  19.0   RC1/4,RC3/8  8.00     7.16      3        12.03     64.00     C       •
           MTEC 1212D19 14BSPT  14.0   RC1/2,RC7/8  12.00   10.88      4        16.33     84.00     C       •
           MTEC 1616D28 11BSPT  11.0    RC1,RC2    16.00    14.17      4        25.40    101.00     C       •
          •  For user guide, see pages 435-442
          (1)  Threads per inch
          (2)  Number of flutes
          (3)  C-Cylindrical



                                                            APMX

          MTECZ-BSPT                                        TP
          Solid Carbide Threading Endmills
          with Coolant Holes Located                 DC                                  DCONMS
          in the Flutes for Internal or                                  15°
          External BSPT Thread Profile                                   OAL
                                                                           Application: General engineering fittings and pipe couplings

                     NUT
              TP                                                  Dimensions
             27.5˚ 27.5˚
                RE=0.137TP
            90˚  Taper 1:16
                   SCREW
           Designation            TPI (1)  BSPT  DCONMS   DC      NOF (2)  APMX    OAL     Shank (3)  TP (4)  IC908
           MTECZ 08078C14 28BSPT  28.0   RC1/8    8.00    7.80     3       14.10   64.00     C      0.907   •
           MTECZ 1010D16 19BSPT   19.0  RC1/4-3/8  10.00  10.00    4       16.70   73.00     C      1.337   •
          •  With internal coolant hole   • For user guide, see pages 435-442
          (1)  Threads per inch
          (2)  Number of flutes
          (3)  C-Cylindrical
          (4)  Thread pitch





                                                     APMX
          MTEC-NPT                                 TP
          Solid Carbide Threading
          Endmills for External or            DC                                    DCONMS
          Internal NPT Thread Profile
                                                                   15°
                                                                  OAL
                                                                                      Application: Steam, gas and water pipes
                     NUT
              TP                                                Dimensions
             30˚  30˚
            90˚  Taper 1:16
                   SCREW
           Designation          TPI (1)  TDZ      DCONMS     DC       NOF (2)   APMX      OAL     Shank (3)  IC908
           MTEC 0606C9 27NPT     27.0    1/16,1/8  6.00      5.36      3        9.90      58.00     C       •
           MTEC 0808C14 18NPT    18.0    1/4,3/8   8.00      7.12      3        14.80     64.00     C       •
           MTEC 1212D20 14NPT    14.0    1/2,3/4   12.00     10.77     4        20.90     84.00     C       •
           MTEC 1616D27 11.5NPT  11.5     1,2      16.00     14.24     4        27.60    101.00     C       •
           MTEC 2020D39 8NPT     8.0     ≥2-1/2    20.00     20.00     4        39.70    105.00     C       •
          •  For user guide, see pages 435-442
          (1)  Threads per inch
          (2)  Number of flutes
          (3)  C-Cylindrical
