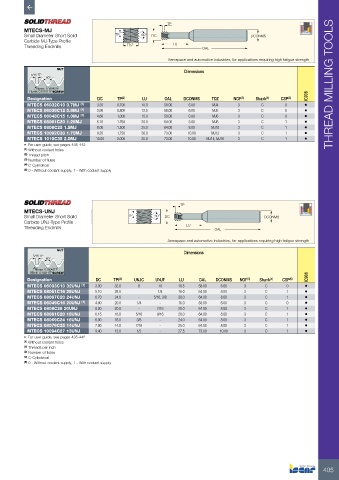

P. 407
TP
MTECS-MJ
Small Diameter Short Solid TP 60° DC DCONMS
Carbide MJ-Type Profile
Threading Endmills TDZ LU OAL
Aerospace and automotive industries, for applications requiring high fatigue strength
NUT Dimensions
5/16 TP
60°
REmax 0.18042TP THREAD MILLING TOOLS
REmin 0.15011TP SCREW
Designation DC TP (2) LU OAL DCONMS TDZ NOF (3) Shank (4) CSP (5) IC908
MTECS 06032C10 0.7MJ (1) 3.20 0.700 10.0 58.00 6.00 MJ4 3 C 0 •
MTECS 06039C12 0.8MJ (1) 3.90 0.800 12.5 58.00 6.00 MJ5 3 C 0 •
MTECS 06048C15 1.0MJ (1) 4.80 1.000 15.0 58.00 6.00 MJ6 3 C 0 •
MTECS 08061C20 1.25MJ 6.10 1.250 20.0 64.00 8.00 MJ8 3 C 1 •
MTECS 0808C25 1.5MJ 8.00 1.500 25.0 64.00 8.00 MJ10 3 C 1 •
MTECS 10092C30 1.75MJ 9.20 1.750 30.0 73.00 10.00 MJ12 3 C 1 •
MTECS 1010C35 2.0MJ 10.00 2.000 35.0 73.00 10.00 MJ14, MJ16 3 C 1 •
• For user guide, see pages 435-442
(1) Without coolant holes
(2) Thread pitch
(3) Number of flutes
(4) C-Cylindrical
(5) 0 - Without coolant supply, 1 - With coolant supply
TP
MTECS-UNJ
Small Diameter Short Solid TP 60° DC DCONMS
Carbide UNJ-Type Profile
Threading Endmills LU OAL
Aerospace and automotive industries, for applications requiring high fatigue strength
NUT Dimensions
5/16 TP
60°
REmax 0.18042TP
REmin 0.15011TPSCREW
Designation DC TPI (2) UNJC UNJF LU OAL DCONMS NOF (3) Shank (4) CSP (5) IC908
MTECS 06033C10 32UNJ (1) 3.30 32.0 8 10 10.5 58.00 6.00 3 C 0 •
MTECS 08051C16 28UNJ 5.10 28.0 - 1/4 16.0 64.00 8.00 3 C 1 •
MTECS 08067C20 24UNJ 6.70 24.0 - 5/16, 3/8 20.0 64.00 8.00 3 C 1 •
MTECS 06049C16 20UNJ (1) 4.90 20.0 1/4 - 16.0 58.00 6.00 3 C 0 •
MTECS 0808C28 20UNJ 8.00 20.0 - 7/16 28.0 64.00 8.00 3 C 1 •
MTECS 08061C20 18UNJ 6.15 18.0 5/16 9/16 20.0 64.00 8.00 3 C 1 •
MTECS 08069C24 16UNJ 6.90 16.0 3/8 - 24.0 64.00 8.00 3 C 1 •
MTECS 08079C25 14UNJ 7.90 14.0 7/16 - 25.0 64.00 8.00 3 C 1 •
MTECS 10094C27 13UNJ 9.40 13.0 1/2 - 27.5 73.00 10.00 3 C 1 •
• For user guide, see pages 435-442
(1) Without coolant holes
(2) Threads per inch
(3) Number of flutes
(4) C-Cylindrical
(5) 0 - Without coolant supply, 1 - With coolant supply
