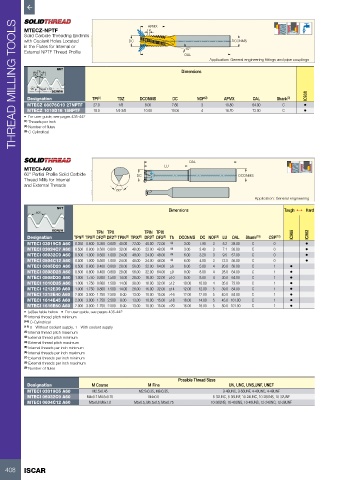

P. 410

THREAD MILLING TOOLS
                                                     APMX
          MTECZ-NPTF                                 TP
          Solid Carbide Threading Endmills
          with Coolant Holes Located          DC                                  DCONMS
          in the Flutes for Internal or                           15°
          External NPTF Thread Profile
                                                                  OAL
                                                                           Application: General engineering fittings and pipe couplings
                     NUT
              TP                                                 Dimensions
             30˚ 30˚
            90˚  Taper 1:16
                   SCREW
           Designation           TPI (1)  TDZ     DCONMS      DC      NOF (2)   APMX      OAL     Shank (3)  IC908
           MTECZ 08076C10 27NPTF  27.0     1/8      8.00     7.60       3       10.80     64.00     C       •
           MTECZ 1010D16 18NPTF   18.0    1/4-3/8   10.00    10.00      4       16.20     73.00     C       •
          •  For user guide, see pages 435-442
          (1)  Threads per inch
          (2)  Number of flutes
          (3)  C-Cylindrical




                                                                   OAL
                                                           LU
          MTECI-A60
          60° Partial Profile Solid Carbide      DC                                  DCONMS
          Thread Mills for Internal
          and External Threads
                                          60°
                                                                                           Application: General engineering
                     NUT
              60°                                           Dimensions                               Tough 1   Hard


                   SCREW           TPN_ TPX_        TPIN_ TPIX_
                                         (4)
                                     (3)
                              (1)
                                 (2)
           Designation     TPN TPX DF2 DF2 TPIN (5)  TPIX (6)  DF2 (7)  DF2 (8)  Th  DCONMS  DC NOF (9)  LU  OAL  Shank (10)  CSP (11)  IC908  IC902
           MTECI 03019C5 A60  0.350 0.600 0.350 0.600 40.00  72.00  40.00 72.00  (a)  3.00  1.90  3  5.2  39.00  C  0  •
           MTECI 03024C7 A60  0.500 0.800 0.500 0.800 32.00  48.00  32.00 48.00  (a)  3.00  2.40  3  7.1  38.00  C  0  •
           MTECI 06032C9 A60  0.500 1.000 0.500 1.000 24.00  48.00  24.00 48.00  (a)  6.00  3.20  3  9.5  57.00  C  0  •
           MTECI 0604C12 A60  0.500 1.000 0.500 1.000 24.00  48.00  24.00 48.00  (a)  6.00  4.00  3  12.5 58.00  C  0  •
           MTECI 0605D20 A60  0.500 0.800 0.400 0.800 28.00  56.00  32.00 64.00  ≥6  6.00  5.00  4  20.0 58.00  C  1  •
           MTECI 0808D28 A60  0.500 0.800 0.400 0.800 28.00  56.00  32.00 64.00  ≥9  8.00  8.00  4  28.0 64.00  C  1  •
           MTECI 0808D30 A60  1.000 1.750 0.800 1.500 14.00  28.00  16.00 32.00  ≥10  8.00  8.00  4  30.0 64.00  C  1  •
           MTECI 1010D35 A60  1.000 1.750 0.800 1.500 14.00  28.00  16.00 32.00  ≥12  10.00  10.00  4  35.0 73.00  C  1  •
           MTECI 1212E39 A60  1.000 1.750 0.800 1.500 14.00  28.00  16.00 32.00  ≥14  12.00  12.00  5  39.0 84.00  C  1  •
           MTECI 1212E40 A60  2.000 3.000 1.750 2.500  8.00  13.00  10.00 15.00  ≥16  12.00  12.00  5  40.0 84.00  C  1  •
           MTECI 1614E45 A60  2.000 3.000 1.750 2.500  8.00  13.00  10.00 15.00  ≥18  16.00  14.00  5  45.0 101.00  C  1  •
           MTECI 1616E50 A60  2.000 3.000 1.750 2.500  8.00  13.00  10.00 15.00  ≥20  16.00  16.00  5  50.0 101.00  C  1  •
          •  (a)See table below   •  For user guide, see pages 435-442
          (1)  Internal thread pitch minimum
          (10)  C-Cylindrical
          (11)  0 - Without coolant supply, 1 - With coolant supply
          (2)  Internal thread pitch maximum
          (3)  External thread pitch minimum
          (4)  External thread pitch maximum
          (5)  Internal threads per inch minimum
          (6)  Internal threads per inch maximum
          (7)  External threads per inch minimum
          (8)  External threads per inch maximum
          (9)  Number of flutes

                                                                Possible Thread Sizes
           Designation           M Coarse            M Fine                      UN, UNC, UNS,UNF, UNEF
           MTECI 03019C5 A60      M2.5x0.45       M2.5x0.35, M3x0.35,          3-48UNC, 3-56UNF, 4-40UNC, 4-48UNF
           MTECI 06032C9 A60    M4x0.7 M4.5x0.75     M4x0.5                 8-32UNC, 8-36UNF, 10-24UNC, 10-28UNS, 10-32UNF
           MTECI 0604C12 A60    M5x0.8 M6x1.0   M5x0.5, M5.5x0.5, M5x0.75  10-36UNS, 10-40UNS, 10-48UNS, 12-24UNC, 12-28UNF
