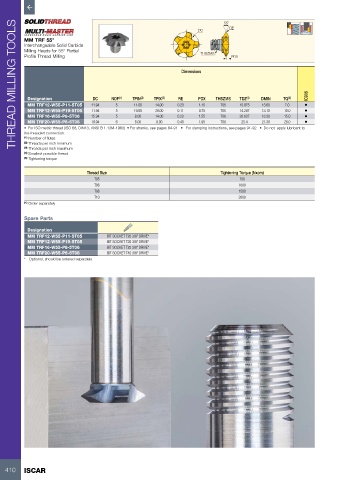

Page 412 - ISCAR(MILLINGCATALOG 38_2021)

THREAD MILLING TOOLS
55˚
RE
DC

MM TRF 55°
Interchangeable Solid Carbide
Milling Heads for 55° Partial THSZMS
Profile Thread Milling PDX

Dimensions

IC908
Designation DC NOF (1) TPIN (2) TPIX (3) RE PDX THSZMS TDZ (4) DMIN TQ (5)
MM TRF12-W55-P11-5T05 11.94 5 11.00 14.00 0.23 1.15 T05 15.875 13.60 7.0 •
MM TRF12-W55-P19-5T05 11.94 5 19.00 28.00 0.11 0.75 T05 14.287 13.10 10.0 •
MM TRF16-W55-P8-5T06 15.94 5 8.00 14.00 0.23 1.55 T06 20.637 18.30 15.0 •
MM TRF20-W55-P6-6T08 19.94 6 6.00 8.00 0.40 1.95 T08 25.4 21.30 28.0 •
• For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) • For shanks, see pages 84-91 • For clamping instructions, see pages 91-92 • Do not apply lubricant to
the threaded connection.
(1) Number of flutes
(2) Threads per inch minimum
(3) Threads per inch maximum
(4) Smallest possible thread
(5) Tightening torque

Thread Size Tightening Torque (Nxcm)
T05 700
T06 1000
T08 1500
T10 2800
(1) Order separately

Spare Parts

Designation
MM TRF12-W55-P11-5T05 BIT SOCKET T20 3/8" DRIVE*
MM TRF12-W55-P19-5T05 BIT SOCKET T20 3/8" DRIVE*
MM TRF16-W55-P8-5T06 BIT SOCKET T25 3/8" DRIVE*
MM TRF20-W55-P6-6T08 BIT SOCKET T40 3/8" DRIVE*
* Optional, should be ordered separately
