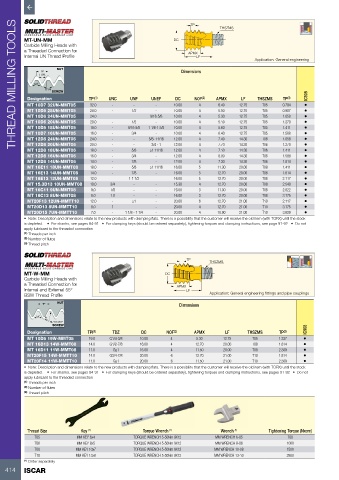

THREAD MILLING TOOLS
TP
THSZMS
MT-UN-MM DC
Carbide Milling Heads with
a Threaded Connection for APMX
Internal UN Thread Profile LF
Application: General engineering
NUT
TP Dimensions
TP/8
60˚
TP/4
SCREW
Designation TPI (1) UNC UNF UNEF DC NOF (2) APMX LF THSZMS TP (3) IC908
MT 10D7 32UN-MMT05 32.0 - - - 10.00 4 6.40 12.75 T05 0.794 •
MT 10D6 28UN-MMT05 28.0 - 1/2 - 10.00 4 5.50 12.75 T05 0.907 •
MT 10D6 24UN-MMT05 24.0 - - 9/16-5/8 10.00 4 5.30 12.75 T05 1.058 •
MT 10D6 20UN-MMT05 20.0 - 1/2 - 10.00 4 5.10 12.75 T05 1.270 •
MT 10D5 18UN-MMT05 18.0 - 9/16-5/8 1 1/8-1 5/8 10.00 4 5.60 12.75 T05 1.411 •
MT 10D7 16UN-MMT05 16.0 - 3/4 - 10.00 4 6.40 12.75 T05 1.588 •
MT 12D8 24UN-MMT06 24.0 - - 5/8- 11/16 12.00 4 7.40 14.30 T06 1.058 •
MT 12D8 20UN-MMT06 20.0 - - 3/4 - 1 12.00 4 7.70 14.30 T06 1.270 •
MT 12D8 18UN-MMT06 18.0 - 5/8 ≥1 11/16 12.00 4 7.10 14.30 T06 1.411 •
MT 12D8 16UN-MMT06 16.0 - 3/4 - 12.00 4 8.00 14.30 T06 1.588 •
MT 12D8 14UN-MMT06 14.0 - 7/8 - 12.00 4 7.30 14.30 T06 1.814 •
MT 16E11 18UN-MMT08 18.0 - 5/8 ≥1 11/16 16.00 5 11.30 20.00 T08 1.411 •
MT 16E13 14UN-MMT08 14.0 - 7/8 - 16.00 5 12.70 20.00 T08 1.814 •
MT 16E13 12UN-MMT08 12.0 - 1-1 1/2 - 16.00 5 12.70 20.00 T08 2.117 •
MT 15.3D13 10UN-MMT08 10.0 3/4 - - 15.30 4 12.70 20.00 T08 2.540 •
MT 16C11 9UN-MMT08 9.0 7/8 - - 16.00 3 11.30 20.00 T08 2.822 •
MT 16C13 8UN-MMT08 8.0 1.0 - - 16.00 3 12.70 20.00 T08 3.175 •
MT20F13 12UN-MMTT10 12.0 - ≥1 - 20.00 6 12.70 21.00 T10 2.117 •
MT20D13 8UN-MMTT10 8.0 1 - 20.00 4 12.70 21.00 T10 3.175 •
MT20D15 7UN-MMTT10 7.0 - 1 1/8 - 1 1/4 - 20.00 4 10.90 21.00 T10 3.629 •
• Note: Description and dimensions relate to the new products with clamping flats. There is a possibility that the customer will receive the old item (with TORX) until the stock
is depleted. • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see page 91-92 • Do not
apply lubricant to the threaded connection
(1) Threads per inch
(2) Number of flutes
(3) Thread pitch
TP
THSZMS
MT-W-MM DC
Carbide Milling Heads with
a Threaded Connection for APMX
Internal and External 55° LF
BSW Thread Profile Application: General engineering fittings and pipe couplings
TP NUT Dimensions
55˚
RE=0.137TP
SCREW
Designation TPI (1) TDZ DC NOF (2) APMX LF THSZMS TP (3) IC908
MT 10D6 19W-MMT05 19.0 G1/4-3/8 10.00 4 5.30 12.75 T05 1.337 •
MT 16D13 14W-MMT08 14.0 G1/2-7/8 16.00 4 12.70 20.00 T08 1.814 •
MT 16D11 11W-MMT08 11.0 G≥1 16.00 4 11.50 20.00 T08 2.309 •
MT20F15 14W-MMTT10 14.0 G3/4-7/8 20.00 6 12.70 21.00 T10 1.814 •
MT20F14 11W-MMTT10 11.0 G≥1 20.00 6 11.50 21.00 T10 2.309 •
• Note: Description and dimensions relate to the new products with clamping flats. There is a possibility that the customer will receive the old item (with TORX) until the stock
is depleted. • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not
apply lubricant to the threaded connection
(1) Threads per inch
(2) Number of flutes
(3) Thread pitch
Thread Size Key (1) Torque Wrench (1) Wrench (1) Tightening Torque (Nxcm)
T05 MM KEY 6x4 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 6-05 700
T06 MM KEY 8x5 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 8-06 1000
T08 MM KEY 10x7 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 10-08 1500
T10 MM KEY 13x8 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 13-10 2800
Order separately
(1)
