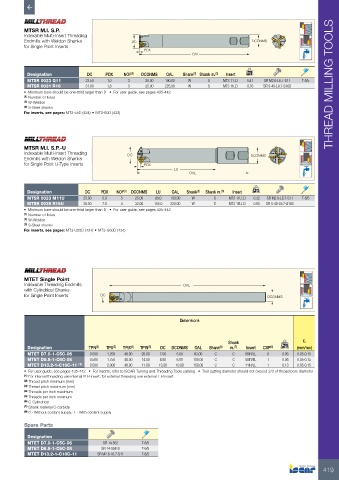

Page 421 - ISCAR(MILLINGCATALOG 38_2021)
P. 421

MTSR M.I. S.P.
         Indexable Multi-Insert Threading
         Endmills with Weldon Shanks           DC                                         DCONMS
         for Single Point Inserts
                                                    PDX
                                                                    OAL


           Designation          DC    PDX   NOF (1)  DCONMS  OAL  Shank (2)  Shank m. (3)  Insert  kg
           MTSR 0023 Q11       23.50   1.0    3     20.00  190.00  W      S    MT3 11..D  0.41  SR M2.6-L6.7-S11  T-8/5
           MTSR 0031 R16       31.00   1.8    3     25.00  225.00  W      S    MT3 16..D  0.76  SR 5-40-L9.7-S16S     THREAD MILLING TOOLS
         •  Minimum bore should be one-third larger than D   •  For user guide, see pages 435-442
         (1)  Number of flutes
         (2)  W-Weldon
         (3)  S-Steel shanks
         For inserts, see pages: MT3-55D (434) • MT3-60D (433)






         MTSR M.I. S.P.-U
         Indexable Multi-Insert Threading     DC                                         DCONMS
         Endmills with Weldon Shanks
         for Single Point U-Type Inserts            PDX
                                                              LU
                                                                    OAL


           Designation         DC   PDX   NOF (1)  DCONMS  LU  OAL  Shank (2)  Shank m. (3)  Insert  kg
           MTSR 0023 M11U     23.00  5.0   3     25.00  88.0  150.00  W     S    MT3 11U..D  0.32  SR M2.6-L6.7-S11  T-8/5
           MTSR 0035 R16U     35.50  7.6   4     32.00  155.0  220.00  W    S    MT3 16U..D  0.95  SR 5-40-L9.7-S16S
         •  Minimum bore should be one-third larger than D   •  For user guide, see pages 435-442
         (1)  Number of flutes
         (2)  W-Weldon
         (3)  S-Steel shanks
         For inserts, see pages: MT3-U55D (434) • MT3-U60D (434)








          MTET Single Point
          Indexable Threading Endmills                           OAL
          with Cylindrical Shanks
          for Single Point Inserts  DC                                                         DCONMS




                                                                Dimensions


                                                                                 Shank                      fz
           Designation          TPN (2)  TPX (3)  TPIX (4)  TPIN (5)  DC  DCONMS  OAL  Shank (6)  m. (7)  Insert  CSP (8)  kg  (mm/rev)
           MTET D7.0-1-C5C-06    0.500  1.250  48.00  20.00  7.00  5.00  63.00  C  C   06IR/EL  0   0.06  0.05-0.15
           MTET D8.8-1-C6C-08    0.500  1.750  48.00  14.00  8.80  6.00  100.00  C  C  08IR/EL  1   0.06  0.05-0.15
           MTET D13.2-1-C10C-11  (1)  0.500  2.000  48.00  11.00  13.20  10.00  150.00  C  C  11IR/EL  1  0.13  0.05-0.15
          •  For user guide, see pages 435-442   •  For inserts, refer to ISCAR Turning and Threading Tools catalog   •  Tool cutting diameter should not exceed 2/3 of thread bore diameter
          (1)  For internal threading use internal R.H insert, for external threading use external L.H insert
          (2)  Thread pitch minimum (mm)
          (3)  Thread pitch maximum (mm)
          (4)  Threads per inch maximum
          (5)  Threads per inch minimum
          (6)  C-Cylindrical
          (7)  Shank material C-carbide
          (8)  0 - Without coolant supply, 1 - With coolant supply

          Spare Parts

           Designation
           MTET D7.0-1-C5C-06        SR 14-552     T-6/5
           MTET D8.8-1-C6C-08        SR 14-558-S   T-6/5
           MTET D13.2-1-C10C-11    SR M2.6-L6.7-S11  T-8/5
