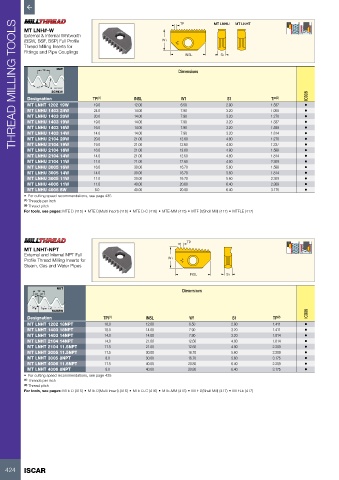

Page 426 - ISCAR(MILLINGCATALOG 38_2021)

THREAD MILLING TOOLS
TP MT LNHU MT LNHT

MT LNH#-W
External & Internal Whitworth
(BSW, BSF, BSP) Full Profile W1
Thread Milling Inserts for
Fittings and Pipe Couplings
INSL S1

TP NUT Dimensions

55˚ RE=0.137TP
SCREW
Designation TPI (1) INSL W1 S1 TP (2) IC908
MT LNHT 1202 19W 19.0 12.00 6.50 2.90 1.337 •
MT LNHU 1403 24W 24.0 14.00 7.90 3.20 1.058 •
MT LNHU 1403 20W 20.0 14.00 7.90 3.20 1.270 •
MT LNHU 1403 19W 19.0 14.00 7.90 3.20 1.337 •
MT LNHU 1403 16W 16.0 14.00 7.90 3.20 1.588 •
MT LNHU 1403 14W 14.0 14.00 7.90 3.20 1.814 •
MT LNHU 2104 20W 20.0 21.00 12.60 4.80 1.270 •
MT LNHU 2104 19W 19.0 21.00 12.60 4.80 1.337 •
MT LNHU 2104 16W 16.0 21.00 12.60 4.80 1.588 •
MT LNHU 2104 14W 14.0 21.00 12.60 4.80 1.814 •
MT LNHU 2104 11W 11.0 21.00 12.60 4.80 2.309 •
MT LNHU 3005 16W 16.0 30.00 16.70 5.60 1.588 •
MT LNHU 3005 14W 14.0 30.00 16.70 5.60 1.814 •
MT LNHU 3005 11W 11.0 30.00 16.70 5.60 2.309 •
MT LNHU 4006 11W 11.0 40.00 20.80 6.40 2.309 •
MT LNHU 4006 8W 8.0 40.00 20.80 6.40 3.175 •
• For cutting speed recommendations, see page 435
(1) Threads per inch
(2) Thread pitch
For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) • MTFLE (417)

TP

MT LNHT-NPT
External and Internal NPT Full
Profile Thread Milling Inserts for W1
Steam, Gas and Water Pipes
INSL S1

NUT
TP Dimensions
30˚ 30˚
90˚ Taper 1:16
SCREW IC908
Designation TPI (1) INSL W1 S1 TP (2)
MT LNHT 1202 18NPT 18.0 12.00 6.50 2.90 1.411 •
MT LNHT 1403 18NPT 18.0 14.00 7.90 3.20 1.411 •
MT LNHT 1403 14NPT 14.0 14.00 7.90 3.20 1.814 •
MT LNHT 2104 14NPT 14.0 21.00 12.60 4.80 1.814 •
MT LNHT 2104 11.5NPT 11.5 21.00 12.60 4.80 2.209 •
MT LNHT 3005 11.5NPT 11.5 30.00 16.70 5.60 2.209 •
MT LNHT 3005 8NPT 8.0 30.00 16.70 5.60 3.175 •
MT LNHT 4006 11.5NPT 11.5 40.00 20.80 6.40 2.209 •
MT LNHT 4006 8NPT 8.0 40.00 20.80 6.40 3.175 •
• For cutting speed recommendations, see page 435
(1) Threads per inch
(2) Thread pitch
For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) • MTFLE (417)
