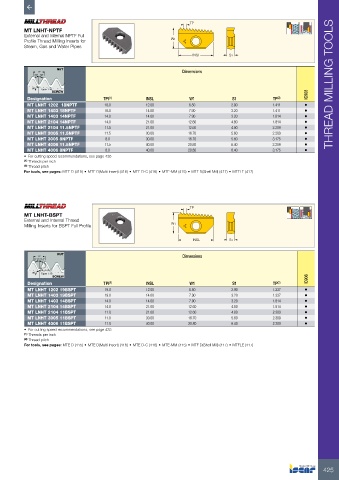

Page 427 - ISCAR(MILLINGCATALOG 38_2021)

TP

MT LNHT-NPTF
External and Internal NPTF Full
Profile Thread Milling Inserts for W1
Steam, Gas and Water Pipes
INSL S1

NUT
TP Dimensions
30˚ 30˚
90˚ Taper 1:16 THREAD MILLING TOOLS
SCREW IC908
Designation TPI (1) INSL W1 S1 TP (2)
MT LNHT 1202 18NPTF 18.0 12.00 6.50 2.90 1.411 •
MT LNHT 1403 18NPTF 18.0 14.00 7.90 3.20 1.411 •
MT LNHT 1403 14NPTF 14.0 14.00 7.90 3.20 1.814 •
MT LNHT 2104 14NPTF 14.0 21.00 12.60 4.80 1.814 •
MT LNHT 2104 11.5NPTF 11.5 21.00 12.60 4.80 2.209 •
MT LNHT 3005 11.5NPTF 11.5 30.00 16.70 5.60 2.209 •
MT LNHT 3005 8NPTF 8.0 30.00 16.70 5.60 3.175 •
MT LNHT 4006 11.5NPTF 11.5 40.00 20.80 6.40 2.209 •
MT LNHT 4006 8NPTF 8.0 40.00 20.80 6.40 3.175 •
• For cutting speed recommendations, see page 435
(1) Threads per inch
(2) Thread pitch
For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) • MTFLE (417)

TP

MT LNHT-BSPT
External and Internal Thread
Milling Inserts for BSPT Full Profile W1

INSL S1

NUT
TP Dimensions
27.5˚ 27.5˚
RE=0.137TP
90˚ Taper 1:16
SCREW IC908
Designation TPI (1) INSL W1 S1 TP (2)
MT LNHT 1202 19BSPT 19.0 12.00 6.50 2.90 1.337 •
MT LNHT 1403 19BSPT 19.0 14.00 7.90 3.20 1.337 •
MT LNHT 1403 14BSPT 14.0 14.00 7.90 3.20 1.814 •
MT LNHT 2104 14BSPT 14.0 21.00 12.60 4.80 1.814 •
MT LNHT 2104 11BSPT 11.0 21.00 12.60 4.80 2.309 •
MT LNHT 3005 11BSPT 11.0 30.00 16.70 5.60 2.309 •
MT LNHT 4006 11BSPT 11.0 40.00 20.80 6.40 2.309 •
• For cutting speed recommendations, see page 435
(1) Threads per inch
(2) Thread pitch
For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) • MTFLE (417)

425
