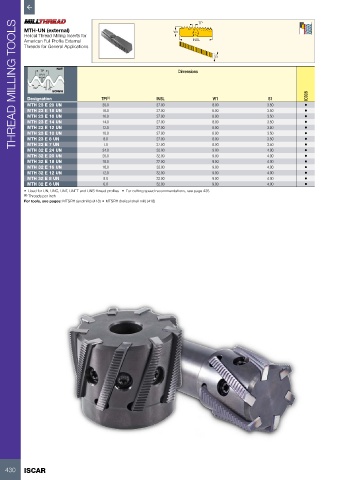

P. 432

THREAD MILLING TOOLS
                                                                       TP

          MTH-UN (external)                                   W1
          Helical Thread Milling Inserts for
          American Full Profile External                             lNSL
            Threads for General Applications
                                                                            S1

                     NUT
               TP                                               Dimensions
               TP/4
             60°  TP/8
                   SCREW
           Designation               TPI (1)            INSL                W1                 S1            IC908
           MTH 23 E 20 UN            20.0               27.00               8.00               3.50         •
           MTH 23 E 18 UN            18.0               27.00               8.00               3.50         •
           MTH 23 E 16 UN            16.0               27.00               8.00               3.50         •
           MTH 23 E 14 UN            14.0               27.00               8.00               3.50         •
           MTH 23 E 12 UN            12.0               27.00               8.00               3.50         •
           MTH 23 E 10 UN            10.0               27.00               8.00               3.50         •
           MTH 23 E 8 UN             8.0                27.00               8.00               3.50         •
           MTH 23 E 7 UN             7.0                27.00               8.00               3.50         •
           MTH 32 E 24 UN            24.0               32.00               9.00               4.00         •
           MTH 32 E 20 UN            20.0               32.00               9.00               4.00         •
           MTH 32 E 18 UN            18.0               32.00               9.00               4.00         •
           MTH 32 E 16 UN            16.0               32.00               9.00               4.00         •
           MTH 32 E 12 UN            12.0               32.00               9.00               4.00         •
           MTH 32 E 8 UN             8.0                32.00               9.00               4.00         •
           MTH 32 E 6 UN             6.0                32.00               9.00               4.00         •
          •  Used for UN, UNC, UNF, UNEF and UNS thread profiles   •  For cutting speed recommendations, see page 435
          (1)  Threads per inch
          For tools, see pages: MTSRH (endmills) (418) • MTSRH (helical shell mill) (418)
