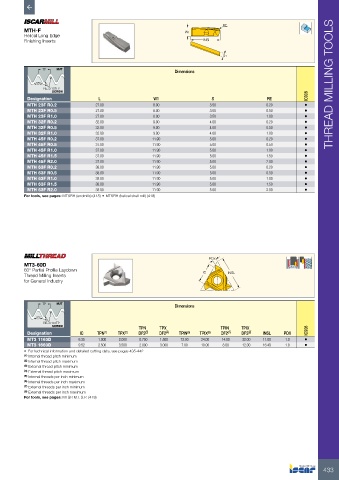

P. 435

RE

          MTH-F                                                   W1
          Helical Long Edge
          Finishing Inserts                                             INSL

                                                                               S1

                TP   NUT                                      Dimensions

              55°                                                                                                     THREAD MILLING TOOLS
                RE=0.137TP
                   SCREW
           Designation              L                  W1                  S                   RE            IC908
           MTH 23F R0.2            27.00               8.00                3.50                0.20         •
           MTH 23F R0.5            27.00               8.00                3.50                0.50         •
           MTH 23F R1.0            27.00               8.00                3.50                1.00         •
           MTH 32F R0.2            32.00               9.00                4.00                0.20         •
           MTH 32F R0.5            32.00               9.00                4.00                0.50         •
           MTH 32F R1.0            32.00               9.00                4.00                1.00         •
           MTH 45F R0.2            37.00               11.90               5.00                0.20         •
           MTH 45F R0.5            37.00               11.90               5.00                0.50         •
           MTH 45F R1.0            37.00               11.90               5.00                1.00         •
           MTH 45F R1.5            37.00               11.90               5.00                1.50         •
           MTH 45F R2.0            37.00               11.90               5.00                2.00         •
           MTH 63F R0.2            38.00               11.90               5.00                0.20         •
           MTH 63F R0.5            38.00               11.90               5.00                0.50         •
           MTH 63F R1.0            38.00               11.90               5.00                1.00         •
           MTH 63F R1.5            38.00               11.90               5.00                1.50         •
           MTH 63F R2.0            38.00               11.90               5.00                2.00         •
          For tools, see pages: MTSRH (endmills) (418) • MTSRH (helical shell mill) (418)











                                                                          PDX

          MT3-60D
          60° Partial Profile Laydown                                   IC       INSL
          Thread Milling Inserts
          for General Industry



                TP   NUT
                                                              Dimensions
              55°
                RE=0.137TP
                   SCREW                          TPN_   TPX_                  TPIN_  TPIX_
           Designation       IC    TPN (1)  TPX (2)  DF2 (3)  DF2 (4)  TPIN (5)  TPIX (6)  DF2 (7)  DF2 (8)  INSL  PDX  IC908
           MT3 1160D         6.35   1.000  2.000  0.750  1.500  12.00   24.00  14.00  32.00  11.00   1.0    •
           MT3 1660D         9.52   2.500  3.500  2.000  3.000   7.00   10.00  8.00   12.00  16.49   1.8    •
          •  For technical information and detailed cutting data, see pages 435-442
          (1)  Internal thread pitch minimum
          (2)  Internal thread pitch maximum
          (3)  External thread pitch minimum
          (4)  External thread pitch maximum
          (5)  Internal threads per inch minimum
          (6)  Internal threads per inch maximum
          (7)  External threads per inch minimum
          (8)  External threads per inch maximum
          For tools, see pages: MTSR M.I. S.P. (419)
