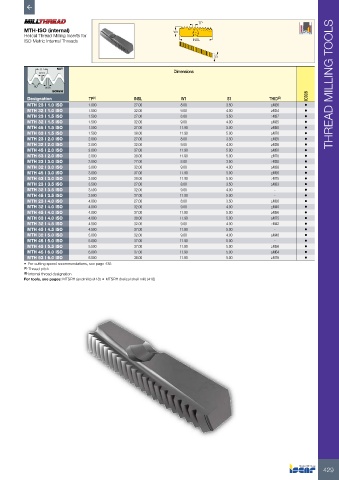

Page 431 - ISCAR(MILLINGCATALOG 38_2021)

TP

MTH-ISO (internal) W1
Helical Thread Milling Inserts for
ISO Metric Internal Threads lNSL

S1

TP NUT
TP/4 Dimensions
60˚ THREAD MILLING TOOLS
TP/8
SCREW
Designation TP (1) INSL W1 S1 THID (2) IC908
MTH 23 I 1.0 ISO 1.000 27.00 8.00 3.50 ≥M26 •
MTH 32 I 1.0 ISO 1.000 32.00 9.00 4.00 ≥M34 •
MTH 23 I 1.5 ISO 1.500 27.00 8.00 3.50 ≥M27 •
MTH 32 I 1.5 ISO 1.500 32.00 9.00 4.00 ≥M35 •
MTH 45 I 1.5 ISO 1.500 37.00 11.90 5.00 ≥M50 •
MTH 63 I 1.5 ISO 1.500 38.00 11.90 5.00 ≥M70 •
MTH 23 I 2.0 ISO 2.000 27.00 8.00 3.50 ≥M28 •
MTH 32 I 2.0 ISO 2.000 32.00 9.00 4.00 ≥M36 •
MTH 45 I 2.0 ISO 2.000 37.00 11.90 5.00 ≥M50 •
MTH 63 I 2.0 ISO 2.000 38.00 11.90 5.00 ≥M70 •
MTH 23 I 3.0 ISO 3.000 27.00 8.00 3.50 ≥M30 •
MTH 32 I 3.0 ISO 3.000 32.00 9.00 4.00 ≥M38 •
MTH 45 I 3.0 ISO 3.000 37.00 11.90 5.00 ≥M56 •
MTH 63 I 3.0 ISO 3.000 38.00 11.90 5.00 ≥M75 •
MTH 23 I 3.5 ISO 3.500 27.00 8.00 3.50 ≥M33 •
MTH 32 I 3.5 ISO 3.500 32.00 9.00 4.00 - •
MTH 45 I 3.5 ISO 3.500 37.00 11.90 5.00 - •
MTH 23 I 4.0 ISO 4.000 27.00 8.00 3.50 ≥M36 •
MTH 32 I 4.0 ISO 4.000 32.00 9.00 4.00 ≥M40 •
MTH 45 I 4.0 ISO 4.000 37.00 11.90 5.00 ≥M56 •
MTH 63 I 4.0 ISO 4.000 38.00 11.90 5.00 ≥M75 •
MTH 32 I 4.5 ISO 4.500 32.00 9.00 4.00 ≥M42 •
MTH 45 I 4.5 ISO 4.500 37.00 11.90 5.00 - •
MTH 32 I 5.0 ISO 5.000 32.00 9.00 4.00 ≥M48 •
MTH 45 I 5.0 ISO 5.000 37.00 11.90 5.00 - •
MTH 45 I 5.5 ISO 5.500 37.00 11.90 5.00 ≥M56 •
MTH 45 I 6.0 ISO 6.000 37.00 11.90 5.00 ≥M64 •
MTH 63 I 6.0 ISO 6.000 38.00 11.90 5.00 ≥M78 •
• For cutting speed recommendations, see page 435
(1) Thread pitch
(2) Internal thread designation
For tools, see pages: MTSRH (endmills) (418) • MTSRH (helical shell mill) (418)
