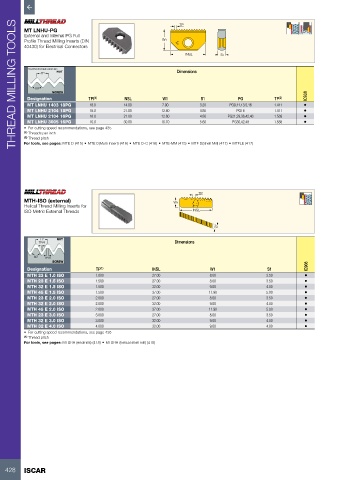

THREAD MILLING TOOLS
TP

MT LNHU-PG
External and Internal PG Full
Profile Thread Milling Inserts (DIN W1
40430) for Electrical Connectors
INSL S1

Used for electrical connectors
NUT Dimensions
TP
80˚
SCREW
Designation TPI (1) INSL W1 S1 PG TP (2) IC908
MT LNHU 1403 18PG 18.0 14.00 7.90 3.20 PG9,11,13.5,16 1.411 •
MT LNHU 2104 18PG 18.0 21.00 12.60 4.80 PG16 1.411 •
MT LNHU 2104 16PG 16.0 21.00 12.60 4.80 PG21,29,36,42,48 1.588 •
MT LNHU 3005 16PG 16.0 30.00 16.70 5.60 PG36,42,48 1.588 •
• For cutting speed recommendations, see page 435
(1) Threads per inch
(2) Thread pitch
For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) • MTFLE (417)

TP

MTH-ISO (external) W1
Helical Thread Milling Inserts for
ISO Metric External Threads lNSL

S1

TP NUT
TP/4 Dimensions

60˚ TP/8
SCREW
Designation TP (1) INSL W1 S1 IC908
MTH 23 E 1.0 ISO 1.000 27.00 8.00 3.50 •
MTH 23 E 1.5 ISO 1.500 27.00 8.00 3.50 •
MTH 32 E 1.5 ISO 1.500 32.00 9.00 4.00 •
MTH 45 E 1.5 ISO 1.500 37.00 11.90 5.00 •
MTH 23 E 2.0 ISO 2.000 27.00 8.00 3.50 •
MTH 32 E 2.0 ISO 2.000 32.00 9.00 4.00 •
MTH 45 E 2.0 ISO 2.000 37.00 11.90 5.00 •
MTH 23 E 3.0 ISO 3.000 27.00 8.00 3.50 •
MTH 32 E 3.0 ISO 3.000 32.00 9.00 4.00 •
MTH 32 E 4.0 ISO 4.000 32.00 9.00 4.00 •
• For cutting speed recommendations, see page 435
(1) Thread pitch
For tools, see pages: MTSRH (endmills) (418) • MTSRH (helical shell mill) (418)
