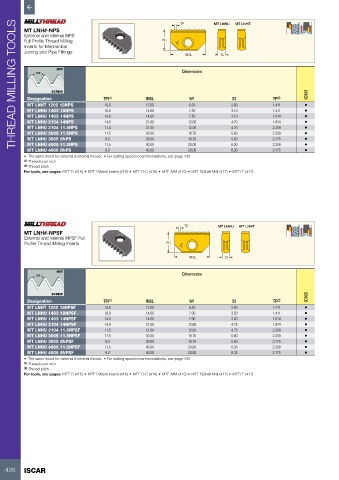

P. 428

THREAD MILLING TOOLS
                                                                TP          MT LNHU  MT LNHT

          MT LNH#-NPS
          External and Internal NPS
            Full Profile Thread Milling                   W1
          Inserts for Mechanical
          Joining and Pipe Fittings
                                                                  INSL         S1

                     NUT                                         Dimensions
              60°


                   SCREW                                                                                     IC908
           Designation               TPI (1)        INSL            W1             S1            TP (2)
           MT LNHT 1202 18NPS         18.0          12.00          6.30           2.90           1.411      •
           MT LNHU 1403 18NPS         18.0          14.00          7.50           3.10           1.411      •
           MT LNHU 1403 14NPS         14.0          14.00          7.50           3.10           1.814      •
           MT LNHU 2104 14NPS         14.0          21.00          12.00          4.70           1.814      •
           MT LNHU 2104 11.5NPS       11.5          21.00          12.00          4.70           2.209      •
           MT LNHU 3005 11.5NPS       11.5          30.00          16.70          5.60           2.209      •
           MT LNHU 3005 8NPS          8.0           30.00          16.70          5.60           3.175      •
           MT LNHU 4006 11.5NPS       11.5          40.00          20.00          6.30           2.209      •
           MT LNHU 4006 8NPS          8.0           40.00          20.00          6.30           3.175      •
          •  The same insert for external & internal thread.  • For cutting speed recommendations, see page 435
          (1)  Threads per inch
          (2)  Thread pitch
          For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) • MTFLE (417)









                                                                  TP          MT LNHU  MT LNHT

          MT LNH#-NPSF
          External and Internal NPSF Full
          Profile Thread Milling Inserts                   W1

                                                                   INSL         S1

                     NUT
              60°                                                Dimensions


                   SCREW                                                                                     IC908
           Designation               TPI (1)        INSL            W1             S1            TP (2)
           MT LNHT 1202 18NPSF        18.0          12.00          6.50           2.90           1.411      •
           MT LNHU 1403 18NPSF        18.0          14.00          7.90           3.20           1.411      •
           MT LNHU 1403 14NPSF        14.0          14.00          7.90           3.20           1.814      •
           MT LNHU 2104 14NPSF        14.0          21.00          12.60          4.75           1.814      •
           MT LNHU 2104 11.5NPSF      11.5          21.00          12.60          4.75           2.209      •
           MT LNHU 3005 11.5NPSF      11.5          30.00          16.70          5.60           2.209      •
           MT LNHU 3005 8NPSF         8.0           30.00          16.70          5.60           3.175      •
           MT LNHU 4006 11.5NPSF      11.5          40.00          20.80          6.35           2.209      •
           MT LNHU 4006 8NPSF         8.0           40.00          20.80          6.35           3.175      •
          •  The same insert for external & internal thread.  • For cutting speed recommendations, see page 435
          (1)  Threads per inch
          (2)  Thread pitch
          For tools, see pages: MTE D (415) • MTE D(Multi Insert) (416) • MTE D-C (416) • MTE-MM (415) • MTF D(Shell Mill) (417) • MTFLE (417)
