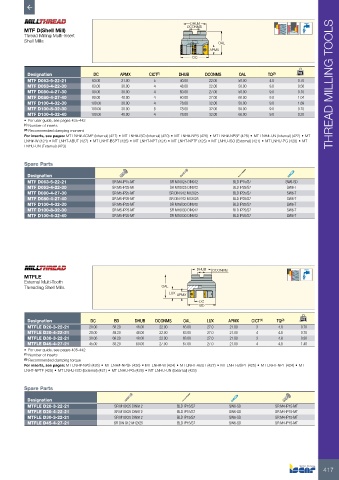

Page 419 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS

MTF D(Shell Mill)
Thread Milling Multi-Insert
Shell Mills OAL
APMX
DC

Designation DC APMX CICT (1) DHUB DCONMS OAL TQ (2) kg
MTF D063-5-22-21 63.00 21.00 5 40.00 22.00 50.00 4.8 0.70
MTF D063-4-22-30 63.00 30.00 4 48.00 22.00 50.00 9.0 0.56 THREAD MILLING TOOLS
MTF D080-4-27-30 80.00 30.00 4 60.00 27.00 50.00 9.0 0.10
MTF D080-4-27-40 80.00 40.00 4 60.00 27.00 60.00 9.0 1.04
MTF D100-4-32-30 100.00 30.00 4 78.00 32.00 50.00 9.0 1.89
MTF D100-8-32-30 100.00 30.00 8 78.00 32.00 50.00 9.0 0.15
MTF D100-4-32-40 100.00 40.00 4 78.00 32.00 60.00 9.0 0.20
• For user guide, see pages 435-442
(1) Number of inserts
(2) Recommended clamping moment
For inserts, see pages: MT LNH#-ACME (Internal) (427) • MT LNH#-ISO (Internal) (420) • MT LNH#-NPS (426) • MT LNH#-NPSF (426) • MT LNH#-UN (Internal) (422) • MT
LNH#-W (424) • MT LNHT-ABUT (427) • MT LNHT-BSPT (425) • MT LNHT-NPT (424) • MT LNHT-NPTF (425) • MT LNHU-ISO (External) (421) • MT LNHU-PG (428) • MT
LNHU-UN (External) (423)

Spare Parts

Designation
MTF D063-5-22-21 SR M4-IP15-MT SR M10X25 DIN912 BLD IP15/S7 SW6-SD
MTF D063-4-22-30 SR M5-IP25-MT SR M10X25 DIN912 BLD IP25/S7 SW6-T
MTF D080-4-27-30 SR M5-IP25-MT SR DIN 912 M12X25 BLD IP25/S7 SW6-T
MTF D080-4-27-40 SR M5-IP25-MT SR DIN 912 M12X25 BLD IP25/S7 SW6-T
MTF D100-4-32-30 SR M5-IP25-MT SR M16X30 DIN912 BLD IP25/S7 SW6-T
MTF D100-8-32-30 SR M5-IP25-MT SR M16X30 DIN912 BLD IP25/S7 SW6-T
MTF D100-4-32-40 SR M5-IP25-MT SR M16X30 DIN912 BLD IP25/S7 SW6-T

DHUB DCONMS

MTFLE
External Multi-Tooth
Threading Shell Mills OAL
LUX APMX
DC
BD

Designation DC BD DHUB DCONMS OAL LUX APMX CICT (1) TQ (2) kg
MTFLE D20-3-22-21 20.00 58.20 48.00 22.00 63.00 27.0 21.00 3 4.8 0.70
MTFLE D20-4-22-21 20.00 58.20 48.00 22.00 63.00 27.0 21.00 4 4.8 0.70
MTFLE D30-3-22-21 30.00 68.20 48.00 22.00 63.00 27.0 21.00 3 4.8 0.90
MTFLE D45-4-27-21 45.00 83.20 60.00 27.00 67.00 27.0 21.00 4 4.8 1.40
• For user guide, see pages 435-442
(1) Number of inserts
(2) Recommended clamping torque
For inserts, see pages: MT LNH#-NPS (426) • MT LNH#-NPSF (426) • MT LNH#-W (424) • MT LNHT-ABUT (427) • MT LNHT-BSPT (425) • MT LNHT-NPT (424) • MT
LNHT-NPTF (425) • MT LNHU-ISO (External) (421) • MT LNHU-PG (428) • MT LNHU-UN (External) (423)

Spare Parts

Designation
MTFLE D20-3-22-21 SR M10X25 DIN912 BLD IP15/S7 SW6-SD SR M4-IP15-MT
MTFLE D20-4-22-21 SR M10X25 DIN912 BLD IP15/S7 SW6-SD SR M4-IP15-MT
MTFLE D30-3-22-21 SR M10X25 DIN912 BLD IP15/S7 SW6-SD SR M4-IP15-MT
MTFLE D45-4-27-21 SR DIN 912 M12X25 BLD IP15/S7 SW6-SD SR M4-IP15-MT

417
