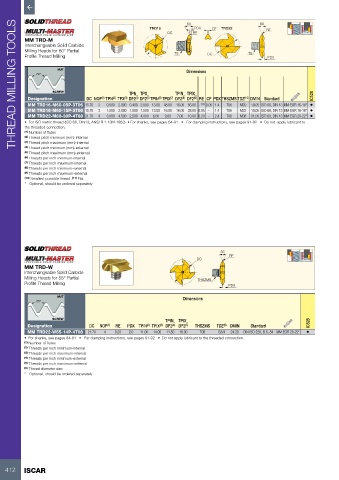

P. 414

THREAD MILLING TOOLS
                                                                   60                       60

                                                      TRD16          PDX    CF  TRD22         RE
                                                            DC       RE

          MM TRD-M
          Interchangeable Solid Carbide
          Milling Heads for 60° Partial                       TS                        TS
          Profile Thread Milling                                          DC                   PDX
                     NUT                                           Dimensions
              60°


                   SCREW                      TPN_ TPX_        TPIN_ TPIX_
                                                         (6)
                                                     (5)
                                                 (4)
           Designation         DC NOF TPN (2)  TPX DF2 DF2 TPIN TPIX (7)  DF2 (8)  DF2 (9)  RE CF PDX THSZMS TDZ (10)  DMIN Standard  IC528
                                     (1)
                                             (3)
           MM TRD16-M60-05P-3T06 15.70  3  0.500 2.000 0.400 2.000 13.00  48.00  16.00 56.00 -  (11)  0.05 1.4  T06  M20  19.05 ISO 68, DIN 13 MM EGR 16-18* •
           MM TRD16-M60-15P-3T06 15.70  3  1.500 2.000 1.000 1.500 13.00  16.00  16.00 28.00 0.05 -  1.4  T06  M22  19.05 ISO 68, DIN 13 MM EGR 16-18* •
           MM TRD22-M60-30P-4T08 21.70  4  3.000 4.500 2.500 4.000  6.00  9.00  7.00  10.00 0.20 -  2.4  T08  M36  31.00 ISO 68, DIN 13 MM EGR 20-22* •
          •  For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983)  • For shanks, see pages 84-91   •   For clamping instructions, see pages 91-92   •  Do not  apply lubricant to
          the threaded connection.
          (1)  Number of flutes
          (2)  Thread pitch minimum (mm)-internal
          (3)  Thread pitch maximum (mm)-internal
          (4)  Thread pitch minimum (mm)-external
          (5)  Thread pitch maximum (mm)-external
          (6)  Threads per inch minimum-internal
          (7)  Threads per inch maximum-internal
          (8)  Threads per inch minimum-external
          (9)  Threads per inch maximum-external
          (10)  Smallest possible thread   (11)  Flat
          *  Optional, should be ordered separately











                                                                              55
                                                                                  RE

                                                                      DC

          MM TRD-W
          Interchangeable Solid Carbide
          Milling Heads for 55° Partial                               THSZMS
          Profile Thread Milling                                                 PDX
                     NUT
              55°                                                Dimensions


                   SCREW                                   TPIN_ TPIX_
           Designation          DC  NOF (1)  RE  PDX TPIN (2)  TPIX (3)  DF2 (4)  DF2 (5)  THSZMS  TDZ (6)  DMIN  Standard  IC528
           MM TRD22-W55-14P-4T08  21.70  4  0.20  2.0  11.00  14.00  11.50  16.00  T08  G3/4  24.20  DIN ISO 228, B.S. 84 MM EGR 20-22*  •
          •  For shanks, see pages 84-91   •   For clamping instructions, see pages 91-92   •  Do not apply lubricant to the threaded connection.
          (1)  Number of flutes
          (2)  Threads per inch minimum-internal
          (3)  Threads per inch maximum-internal
          (4)  Threads per inch minimum-external
          (5)  Threads per inch maximum-external
          (6)  Thread diameter size
          *  Optional, should be ordered separately
