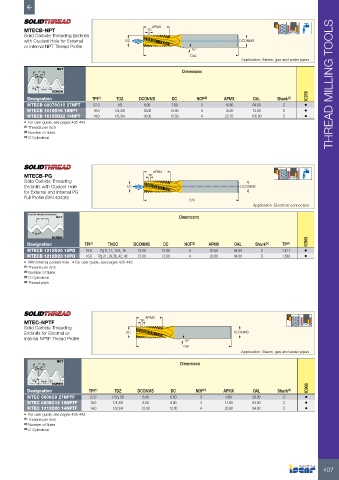

P. 409

APMX

          MTECB-NPT                                  TP
          Solid Carbide Threading Endmills
          with Coolant Hole for External     DC                                      DCONMS
          or Internal NPT Thread Profile
                                                                    15°
                                                                    OAL
                                                                                      Application: Steam, gas and water pipes
                     NUT
              TP                                                 Dimensions
             30˚  30˚
            90˚  Taper 1:16                                                                                           THREAD MILLING TOOLS
                   SCREW
           Designation           TPI (1)  TDZ     DCONMS     DC       NOF (2)   APMX      OAL     Shank (3)  IC908
           MTECB 08076C10 27NPT   27.0    1/8       8.00     7.60       3       10.80     64.00     C       •
           MTECB 1010D16 18NPT    18.0   1/4,3/8   10.00     10.00      4       16.20     73.00     C       •
           MTECB 16155D22 14NPT   14.0   1/2,3/4   16.00     15.50      4       22.70    105.00     C       •
          •  For user guide, see pages 435-442
          (1)  Threads per inch
          (2)  Number of flutes
          (3)  C-Cylindrical




                                                       APMX

          MTECB-PG                                   TP
          Solid Carbide Threading
          Endmills with Coolant Hole          DC                                      DCONMS
          for External and Internal PG
          Full Profile (DIN 40430)
                                                                   OAL
                                                                                          Application: Electrical connectors
           Used for electrical connectors
                     NUT                                        Dimensions
               TP
             80˚
                   SCREW
           Designation         TPI (1)  THOD    DCONMS    DC      NOF (2)  APMX    OAL     Shank (3)  TP (4)  IC908
           MTECB 1212D20 18PG  18.0  Pg 9, 11, 13.5, 16  12.00  12.00  4   20.50   84.00     C      1.411   •
           MTECB 1212D23 16PG  16.0  Pg 21, 29,36, 42, 48  12.00  12.00  4  23.00  84.00     C      1.588   •
          •  With internal coolant hole   • For user guide, see pages 435-442
          (1)  Threads per inch
          (2)  Number of flutes
          (3)  C-Cylindrical
          (4)  Thread pitch




                                                    APMX

          MTEC-NPTF                               TP
          Solid Carbide Threading
          Endmills for External or           DC                                    DCONMS
          Internal NPTF Thread Profile                            15°
                                                                 OAL
                                                                                      Application: Steam, gas and water pipes
                     NUT
              TP                                                Dimensions
             30˚  30˚
            90˚  Taper 1:16
                   SCREW
           Designation          TPI (1)  TDZ     DCONMS      DC       NOF (2)   APMX      OAL     Shank (3)  IC908
           MTEC 0606C9 27NPTF    27.0   1/16,1/8   6.00      6.00      3        9.90      58.00     C       •
           MTEC 0808C14 18NPTF   18.0    1/4,3/8   8.00      8.00      3        14.80     64.00     C       •
           MTEC 1212D20 14NPTF   14.0    1/2,3/4   12.00     12.00     4        20.90     84.00     C       •
          •  For user guide, see pages 435-442
          (1)  Threads per inch
          (2)  Number of flutes
          (3)  C-Cylindrical
