Page 561 - ISCAR(MILLINGCATALOG 38_2021)
P. 561
INTRODUCTION

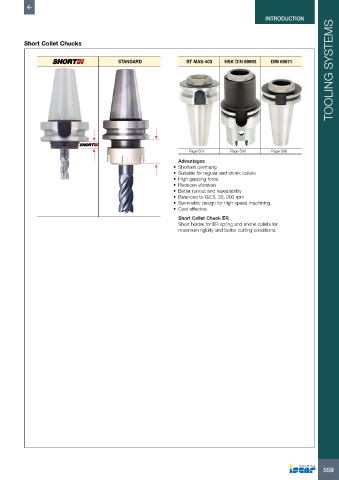

Short Collet Chucks
STANDARD BT MAS-403 HSK DIN 69893 DIN 69871 TOOLING SYSTEMS
Page 631 Page 590 Page 566
Advantages
• Shortest overhang
• Suitable for regular and shrink collets
• High gripping force
• Reduces vibration
• Better runout and repeatability
• Balanced to G2.5, 20, 000 rpm
• Symmetric design for high speed machining
• Cost effective
Short Collet Chuck ER
Short holder for ER spring and shrink collets for
maximum rigidity and better cutting conditions.
559
