INTRODUCTION
TOOLING SYSTEMS

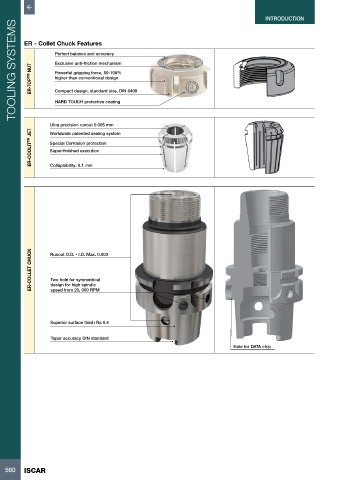

ER - Collet Chuck Features
Perfect balance and accuracy
Exclusive anti-friction mechanism
ER-TOP TM NUT Powerful gripping force, 50-100%
higher than conventional design
Compact design, standard size, DIN 6499
HARD TOUCH protective coating
Ultra precision runout 0.005 mm
ER-COOLIT TM JET Special Corrosion protection
Worldwide patented sealing system
Super-finished execution
Collapsibility: 0.1 mm
ER-COLLET CHUCK Runout O.D. - I.D. Max. 0.003
Two hole for symmetrical
design for high spindle
speed from 20, 000 RPM
Superior surface finish Ra 0.4
Taper accuracy DIN standard
Hole for DATA chip
