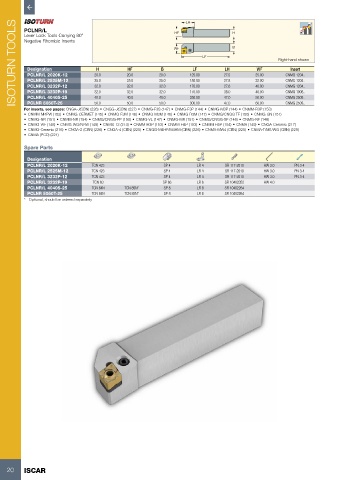

Page 22 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN TOOLS PCLNR/L 20.0 20.0 20.0 WF LH 125.00 LF 27.5 H 25.00 Right-hand shown 95 º

HF
95 º
Lever Lock Tools Carrying 80°
Negative Rhombic Inserts
B

LH
Designation
LF
HF
H
B
Insert
WF
CNMG 1204..
PCLNR/L 2020K-12
PCLNR/L 2525M-12
25.0
27.8
150.00
CNMG 1204..
25.0
25.0
32.00
PCLNR/L 3232P-12
CNMG 1204..
32.0
32.0
32.0
27.6
40.00
170.00
PCLNR/L 3232P-19
40.00
170.00
32.0
38.0
32.0
32.0
47.0
250.00
PCLNR/L 4040S-25
50.00
CNMG 2509..
40.0
40.0
40.0
PCLNR 5050T-25
CNMG 2509..
60.00
47.0
300.00
50.0
50.0
50.0
For inserts, see pages: CNGA-J(CBN) (226) • CNGG-J(CBN) (227) • CNMG-F3S (147) • CNMG-F3P (144) • CNMG-M3P (144) • CNMM-R3P (153) CNMG 1906..
• CNMM-M4PW (152) • CNMG-CERMET (145) • CNMG-F3M (146) • CNMG-M3M (146) • CNMG-R3M (147) • CNMG/CNGG-TF (150) • CNMG-GN (151)
• CNMG-NR (151) • CNMM-NR (154) • CNMG/CNGG-PP (150) • CNMG-VL (147) • CNMG-MR (151) • CNMG/CNGG-SF (148) • CNMG-NF (148)
• CNMG-WF (148) • CNMG-WG/NRW (149) • CNMS-12 (214) • CNMM-H3P (153) • CNMM-H4P (153) • CNMM-H5P (154) • CNMA (149) • CNGA-Ceramic (217)
• CNMG-Ceramic (216) • CNGA-2 (CBN) (226) • CNGA-4 (CBN) (225) • CNGG-M4HF/M4HM (CBN) (226) • CNMA-MW4 (CBN) (225) • CNMA-T/M1/WG (CBN) (225)
• CNMA (PCD) (221)

Spare Parts
Designation
PCLNR/L 2020K-12 TCN 423 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4
PCLNR/L 2525M-12 TCN 423 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4
PCLNR/L 3232P-12 TCN 423 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4
PCLNR/L 3232P-19 TCN 63 SP 66 LR 6 SR 10402352 HW 4.0
PCLNR/L 4040S-25 TCN 84N TCN 85N* SP 8 LR 8 SR 10402264
PCLNR 5050T-25 TCN 84N TCN 85N* SP 8 LR 8 SR 10402264
* Optional, should be ordered separately
