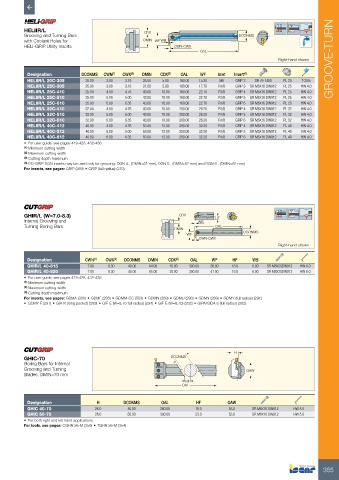

Page 357 - ISCAR(TURNING-CATALOG-42-2022)

HELIIR/L CDX
Grooving and Turning Bars DCONMS
with Coolant Holes for DMIN WF WB
HELI-GRIP Utility Inserts CWN-CWX
OAL
Right-hand shown GROOVE-TURN

Designation DCONMS CWN (1) CWX (2) DMIN CDX (3) OAL WF Inlet Insert (4)
HELIIR/L 20C-305 20.00 3.00 3.18 26.00 5.00 160.00 15.20 M6 GRIP 3 SR 76-1400 PL 20 T-20/5
HELIIR/L 25C-305 25.00 3.00 3.18 31.00 5.00 160.00 17.70 R1/8 GRIP 3 SR M5X16 DIN912 PL 25 HW 4.0
HELIIR/L 25C-410 25.00 4.00 4.76 43.00 10.00 160.00 22.70 R1/8 GRIP 4 SR M5X16 DIN912 PL 25 HW 4.0
HELIIR/L 25C-510 25.00 5.00 5.00 43.00 10.00 160.00 22.70 R1/8 GRIP 5 SR M5X16 DIN912 PL 25 HW 4.0
HELIIR/L 25C-610 25.00 6.00 6.35 43.00 10.00 160.00 22.70 R1/8 GRIP 6 SR M5X16 DIN912 PL 25 HW 4.0
HELIIR/L 32C-410 32.00 4.00 4.76 43.00 10.00 200.00 26.20 R1/8 GRIP 4 SR M5X16 DIN912 PL 32 HW 4.0
HELIIR/L 32C-510 32.00 5.00 5.00 43.00 10.00 200.00 26.20 R1/8 GRIP 5 SR M5X16 DIN912 PL 32 HW 4.0
HELIIR/L 32C-610 32.00 6.00 6.35 43.00 10.00 200.00 26.20 R1/8 GRIP 6 SR M5X16 DIN912 PL 32 HW 4.0
HELIIR/L 40C-412 40.00 4.00 4.76 53.00 12.00 250.00 32.20 R1/8 GRIP 4 SR M5X16 DIN912 PL 40 HW 4.0
HELIIR/L 40C-512 40.00 5.00 5.00 53.00 12.00 250.00 32.20 R1/8 GRIP 5 SR M5X16 DIN912 PL 40 HW 4.0
HELIIR/L 40C-612 40.00 6.00 6.35 53.00 12.00 250.00 32.20 R1/8 GRIP 6 SR M5X16 DIN912 PL 40 HW 4.0
• For user guide, see pages 419-428, 432-436
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
(4) DO-GRIP DGN inserts may be used only for grooving: DGN 4.. (DMIN=51 mm), DGN 5.. (DMIN=57 mm) and DGN 6.. (DMIN=62 mm)
For inserts, see pages: GRIP (269) • GRIP (full radius) (270)

GHIR/L (W=7.0-8.3) CDX HF
Internal Grooving and WB
Turning Boring Bars OAL
DMIN
WF DCONMS
CWN-CWX
Right-hand shown

Designation CWN (1) CWX (2) DCONMS DMIN CDX (3) OAL WF HF WB
GHIR/L 40-815 7.00 8.30 40.00 64.00 15.00 300.00 36.00 18.0 6.00 SR M8X20DIN912 HW 6.0
GHIR/L 40-820 7.00 8.30 40.00 65.00 20.00 300.00 41.00 18.0 6.00 SR M8X20DIN912 HW 6.0
• For user guide, see pages 419-428, 432-436
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
For inserts, see pages: GDMA (300) • GDMF (288) • GDMM-CC (583) • GDMN (289) • GDMU (290) • GDMY (289) • GDMY (full radius) (291)
• GDMY-F (291) • GIA-K (long pocket) (299) • GIF-E (W=8,10 full radius) (294) • GIF-E (W=8,10) (292) • GIPA/GIDA 8 (full radius) (302)

H
GHIC-70 DCONMS
Boring Bars for Internal
Grooving and Turning OAW
Blades, DMIN=70 mm
HF
OAL

Designation H DCONMS OAL HF OAW
GHIC 40-70 26.0 40.00 260.00 18.0 53.0 SR M6X16 DIN912 HW 5.0
GHIC 50-70 26.0 50.00 300.00 23.0 53.0 SR M6X16 DIN912 HW 5.0
• For both right and left hand applications
For tools, see pages: CGHN 26-M (356) • TGHN 26-M (354)
