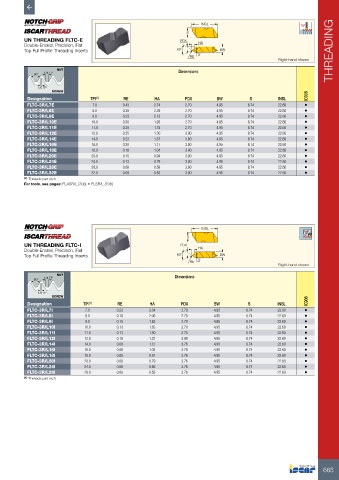

Page 667 - ISCAR(TURNING-CATALOG-42-2022)

INSL
S
UN THREADING FLTC-E PDX
Double-Ended, Precision, Flat HA
Top Full Profile Threading Inserts 60˚ BW THREADING
RE 3˚
Right-hand shown

NUT
1/4 TP Dimensions
60°
1/8 TP
SCREW
Designation TPI (1) RE HA PDX BW S INSL IC908
FLTC-3R/L7E 7.0 0.43 2.74 2.70 4.95 8.74 22.60 •
FLTC-3R/L8E 8.0 0.38 2.39 2.70 4.95 8.74 22.60 •
FLTC-3R/L9E 9.0 0.33 2.13 2.70 4.95 8.74 22.60 •
FLTC-3R/L10E 10.0 0.30 1.93 2.70 4.95 8.74 22.60 •
FLTC-3R/L11E 11.0 0.28 1.75 2.70 4.95 8.74 22.60 •
FLTC-3R/L12E 12.0 0.25 1.30 3.80 4.95 8.74 22.60 •
FLTC-3R/L14E 14.0 0.23 1.37 3.80 4.95 8.74 22.60 •
FLTC-3R/L16E 16.0 0.20 1.17 3.80 4.95 8.74 22.60 •
FLTC-3R/L18E 18.0 0.18 1.04 3.80 4.95 8.74 22.60 •
FLTC-3R/L20E 20.0 0.15 0.94 3.80 4.95 8.74 22.60 •
FLTC-3R/L24E 24.0 0.13 0.79 3.80 4.95 8.74 22.60 •
FLTC-3R/L28E 28.0 0.08 0.58 3.80 4.95 8.74 22.60 •
FLTC-3R/L32E 32.0 0.08 0.53 3.80 4.95 8.74 22.60 •
(1) Threads per inch
For tools, see pages: FLASR/L (708) • FLSR/L (708)

INSL

S
UN THREADING FLTC-I PDX
Double-Ended, Precision, Flat HA
Top Full Profile Threading Inserts 60˚ BW
RE 3˚
Right-hand shown
NUT
1/4 TP Dimensions
60°
1/8 TP
SCREW
Designation TPI (1) RE HA PDX BW S INSL IC908
FLTC-3R/L7I 7.0 0.23 2.34 2.70 4.95 8.74 22.60 •
FLTC-3R/L8I 8.0 0.18 2.06 2.70 4.95 8.74 22.60 •
FLTC-3R/L9I 9.0 0.15 1.83 2.70 4.95 8.74 22.60 •
FLTC-3R/L10I 10.0 0.13 1.65 2.70 4.95 8.74 22.60 •
FLTC-3R/L11I 11.0 0.13 1.50 2.70 4.95 8.74 22.60 •
FLTC-3R/L12I 12.0 0.10 1.22 3.80 4.95 8.74 22.60 •
FLTC-3R/L14I 14.0 0.08 1.12 3.76 4.95 8.74 22.60 •
FLTC-3R/L16I 16.0 0.08 1.02 3.76 4.95 8.74 22.60 •
FLTC-3R/L18I 18.0 0.08 0.91 3.76 4.95 8.74 22.60 •
FLTC-3R/L20I 20.0 0.08 0.79 3.76 4.95 8.74 22.60 •
FLTC-3R/L24I 24.0 0.08 0.66 3.76 4.95 8.74 22.60 •
FLTC-3R/L28I 28.0 0.08 0.58 3.76 4.95 8.74 22.60 •
(1) Threads per inch

665
